High precision liquid computer cleaner/propolis liquid/aseptic liquid filler filling machine

I. Prouduct Information

1,magnetic pump filler is driven by magnetic power, the pump head and the motor is connected without shaft, no need worry about the burnout of the motor because of the high load of the pump.

2,Pump head and motor is imported from Germany, other components are produced in Taiwan, Stable performance, life time is long.

3,Pumper head is made from 316L stainless steel, acid alkaline, corrosion-resistant.

4,The motor run is adjusted by potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately, the filling error is less than 1%. Filling volume is from 3ml-unlimited filling.

5,Fully functional, can be operated by hand, foot pedal filling, automatic filling. Interval time can be adjusted.

6,Widely applied in various industrious, almost can be used for filling any flow liquid, especially suitable for oil, acid and alkali, high corrosive liquid filling.

Machine panel function:

Filling time : for adjusting the filling time

Waiting time : waiting time between each filling when the machine is filling automatically .

Counter : filling counter

Filling speed : adjusting the speed

Fiilling machine controller : for adjusting the filling range . When you turn on the machine , push the button "setting" When the filling range reaches what you want , push the button "setting" once again .The machine will keep the filling range in memory .

II. Technical Data

III. Product show

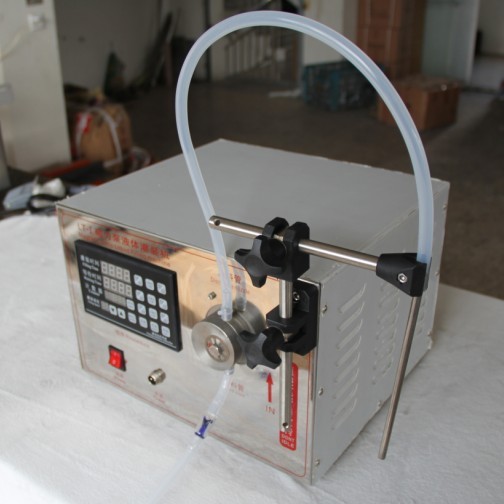

single nozzle magnetic pump filler

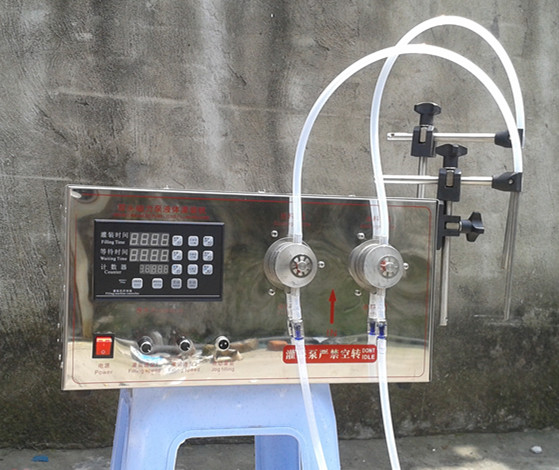

double nozzle magnetic pump filler

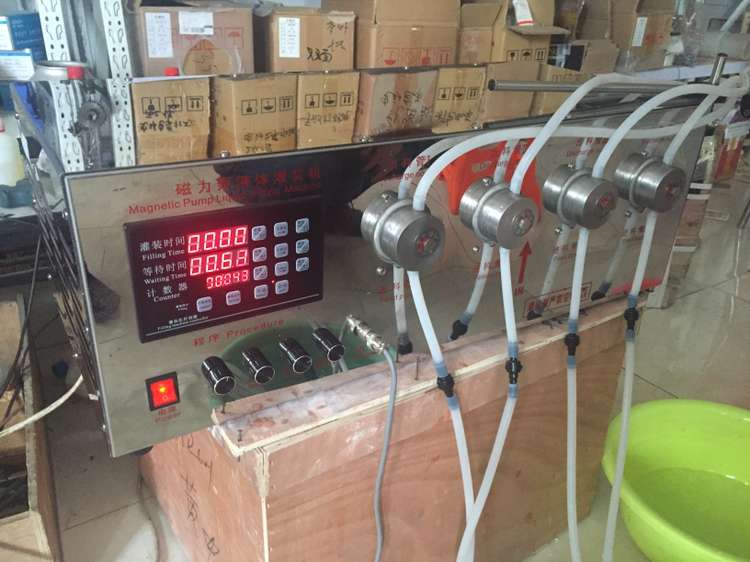

Four nozzles magnetic pump filler

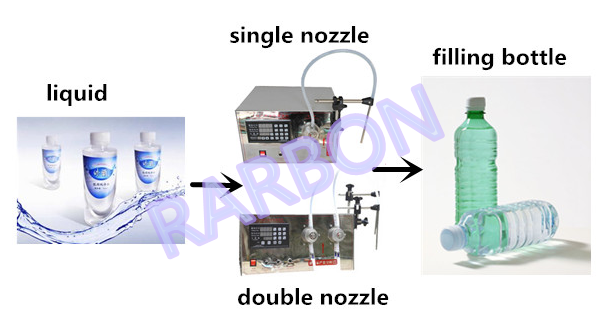

IV. Solutions
