I. Product Information
Features
· Adopt Airtac Pneumatic components from Taiwai, full pneumatic driven does not need electrical power, safety explosion-proof type, simple operation, high accuracy filling
· The machine body using 201 stainless steel, and use food grade of 304 stainless steel material contact parts of the machine, comply with the food safety; the material contact parts can optional 304 or 316 stainless steel;
· Stainless steel valve system design;
· Piston type filling, can be operated by a foot pedal or by automatic timer, quick release nozzle and feed pipe, could transfer between semi-auto or automatic; one head with one cylinders, configuration 80L mixing hopper;
· Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles to ensure the no drip free operation;
· Extremely easy to clean and maintain;
· Small footprint for simple bench mounting;
· Can optional the machine model: 50-500ml 100-1000ml 200-2000ml 300-5000ml;
· Conform to GMP;
Application
· They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials;
· Typical application: configuration mixing hopper, professional use for filling salad and paste material, such as water, oil, juice, detergent, sauce, salad, butter, margarine, ketchup, jam, cream, honey, shampoo etc
· Suitable for various packing such as bottle, jar, can, cup, bag, barrels etc;
II. Technical Data
Model
RBGG
Voltage
Filling speed
20-30 bottles/min/nozzles
Power
300W
Filling precision
Around 1%
Filling range
50-500ml,100-1000ml,200-2000ml,300-5000ml
Air pressure
Filling nozzle
220V/110V
0.4-0.6Mpa
1 nozzle

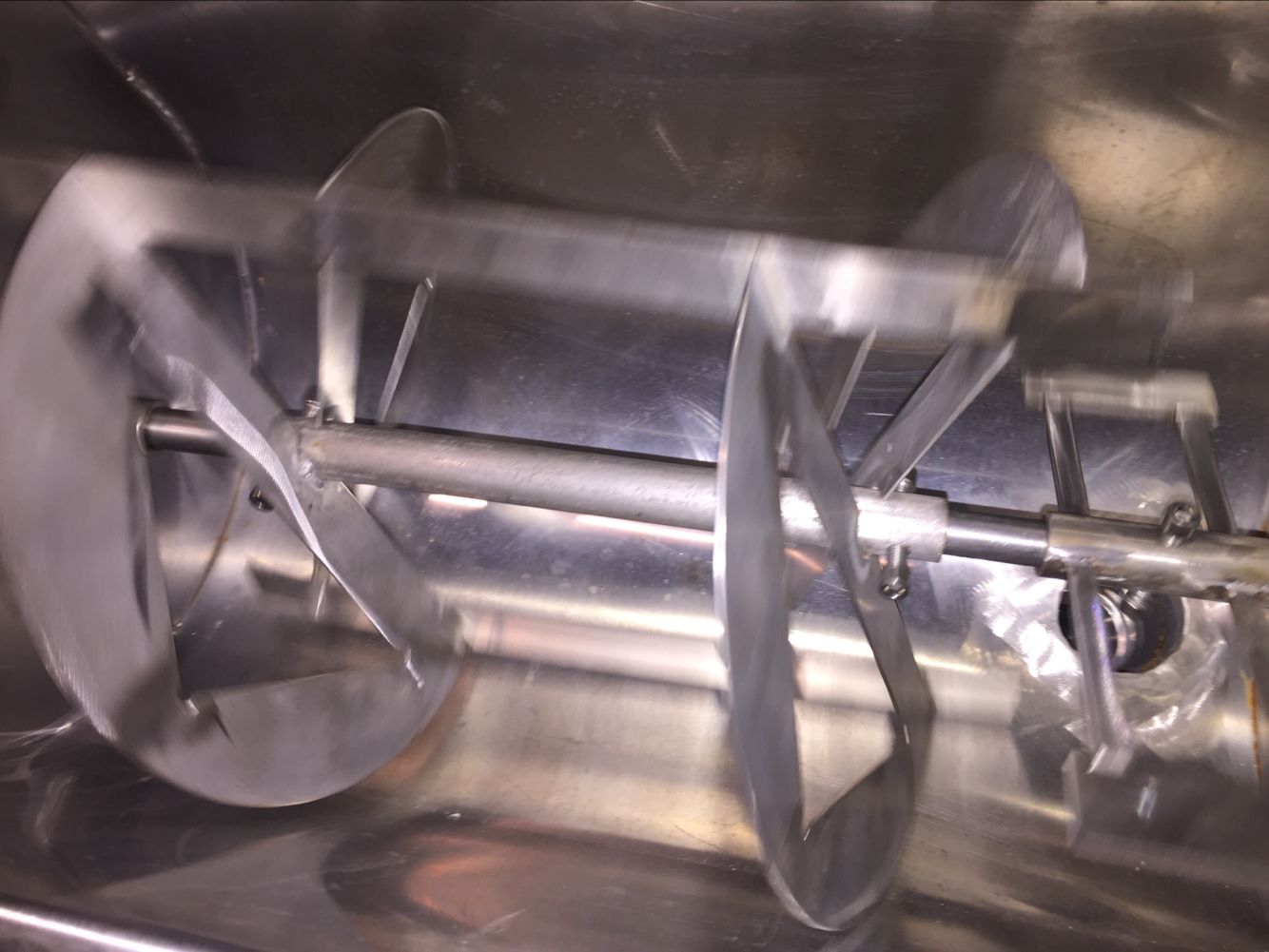

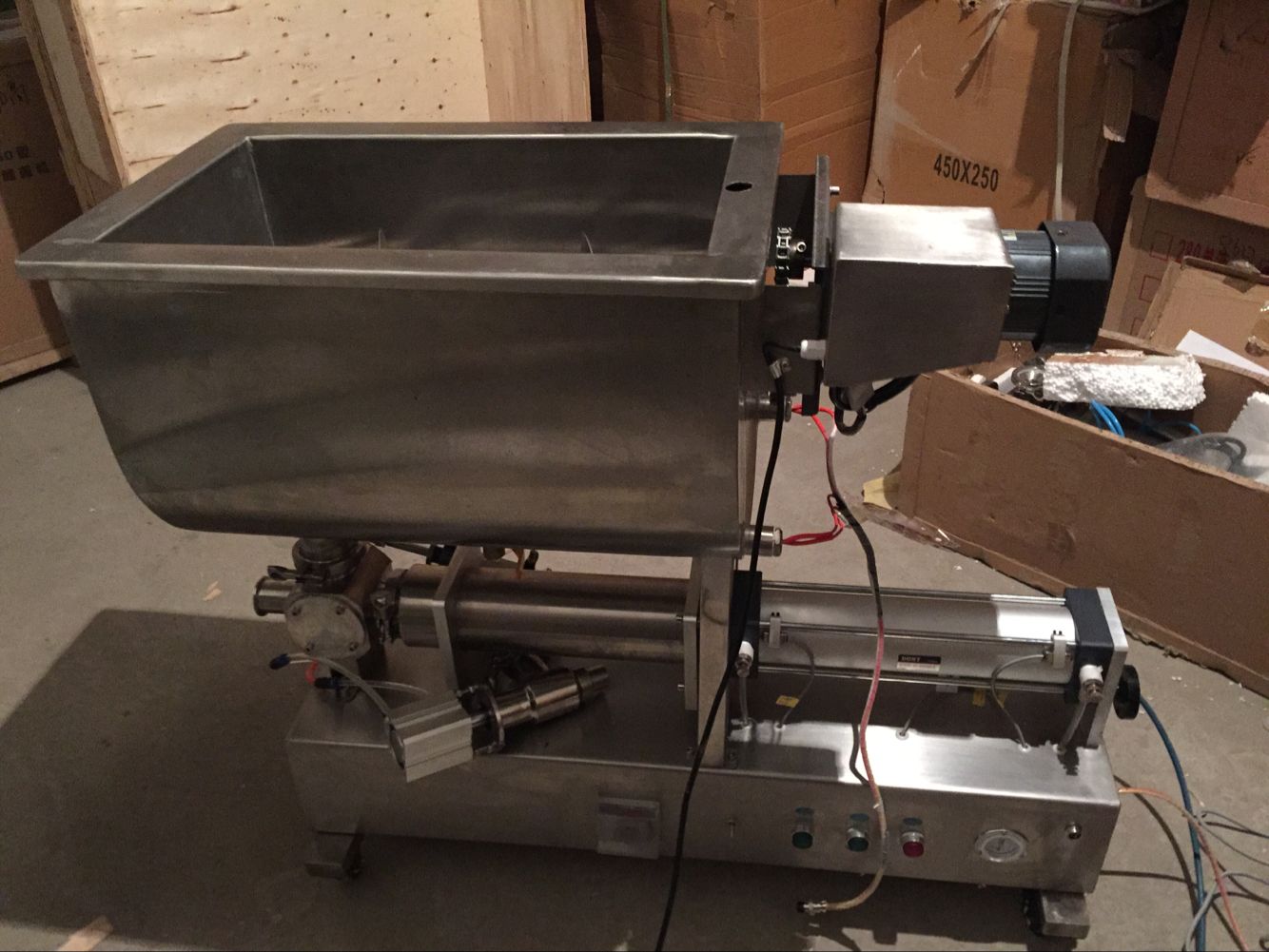

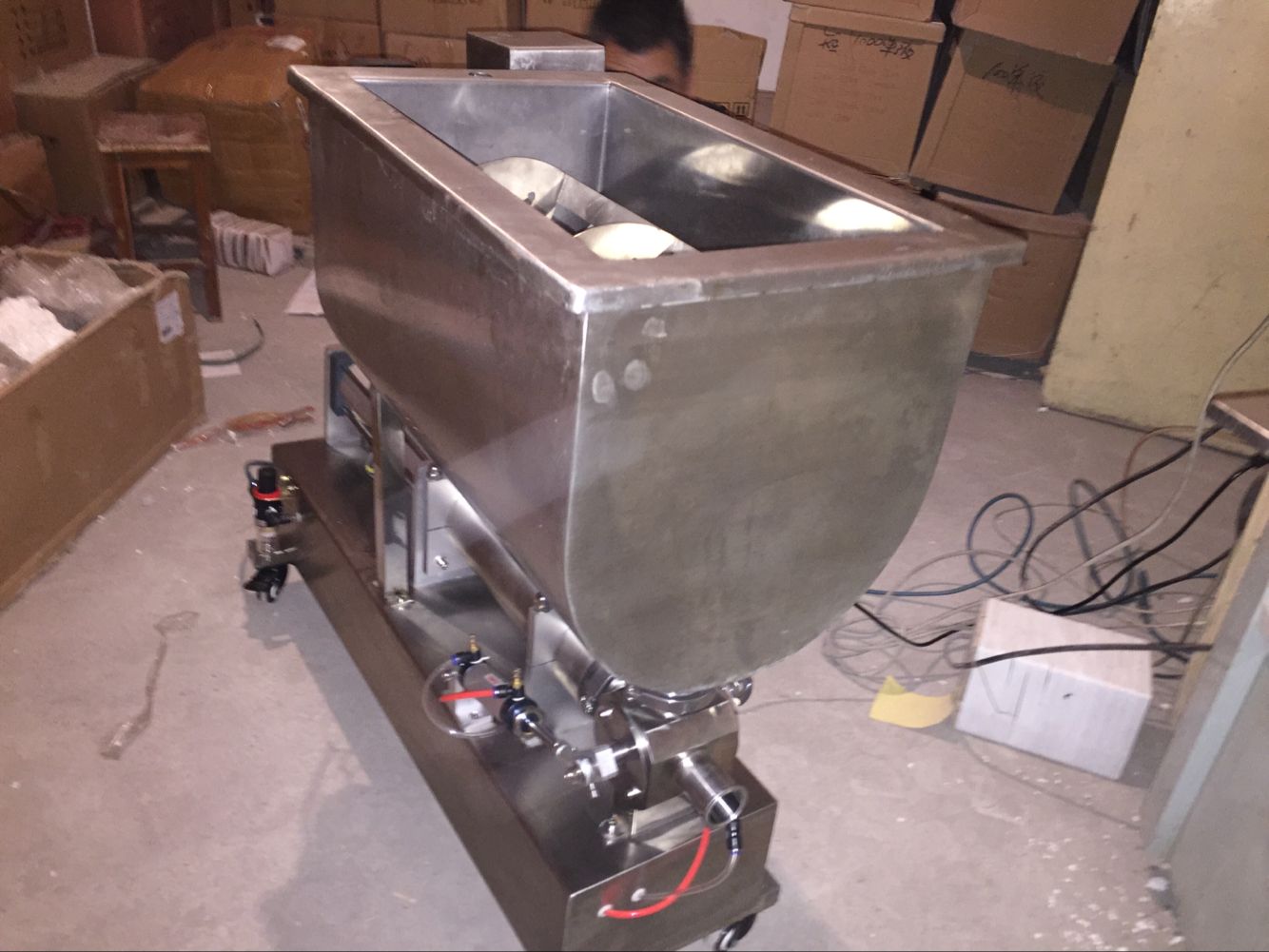

III. Photos Show
IV. Suitable sauce with pieces filling
