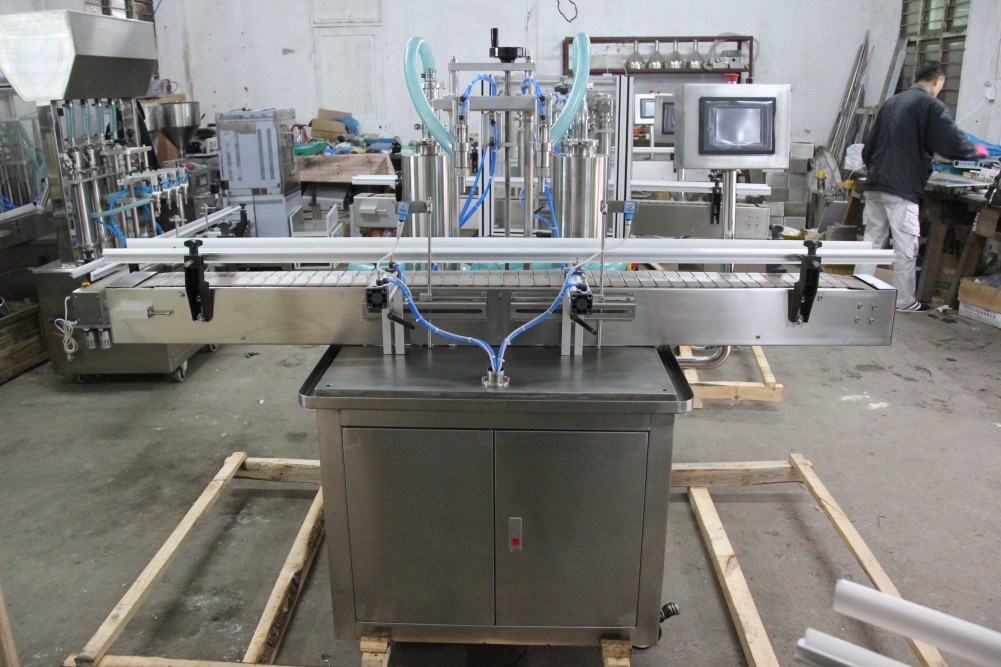

I. Product Information
Automatic filling machine is improved in design at the foundation of consulting the same products abroad, and has increased by some additional functions. Make the products more simple and more convenient in operation, precision and error, installation and adjustment, equipment wash, maintenance etc...
Widely suitable for the industries, such as daily chemical, juice etc., which can fill different liquid products. This machine is compact and rational in design, succinct and beautiful I appearance, adjustment of filling volume is convenient.
This machine has 2-12 filling heads, which are driven by 2-12 cylinders, it is faster and more accurate to filling materials. Adopt the pneumatic part of Germany FESTO and Taiwan Airtac, and the electric control part of Taiwan. Performance is steady. The part contacting materials is made of 316L stainless steel.
Adopt the photoelectric eyes device of Korea S., Taiwan PLC, touch-sensitive screen, frequency converter and French electric apparatus components.
Adjustment is convenient, and filling carried out only with bottles fed, filling volume is accurate and with count function. Adopt filling head of anti-leakage and anti-pull, filling lifting system of anti-high blister products, orientation system of guaranteeing bottleneck orientation and liquid location control system.
II. Technical Data
Item
PLC Controlled Piston Pump Automatic Liquid Filling Machine
Model
GT-2/4/6/8/10/12(can customize as request)
Suitable For
Normal Liquid(like juice, milk, water etc)
Filling Heads
2,4,6,8,10,12
Speed
10-30 bottles/min(one nozzle)
Filling Accuracy
±1%
Power
220V/380V 50Hz
Filling Volume
5-100ml 10-300ml 50-500ml 50-1000ml 300-2500ml 1000-5000ml

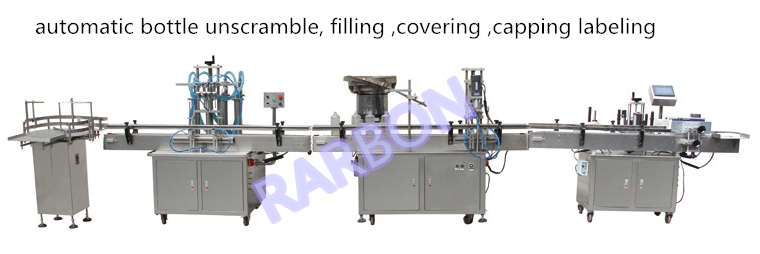

III. Product Show
