I. Product Information
Features
· Adopt manual operation does not need other power, simple operation, high precision filling;
· Small, low cost;
· Using 304 stainless steel construction of material contact parts, stainless steel valve system design;
· Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations;
· Extremely easy to clean and maintain;
· Small footprint for simple bench mounting;
· Conform to GMP;
Application
· They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.

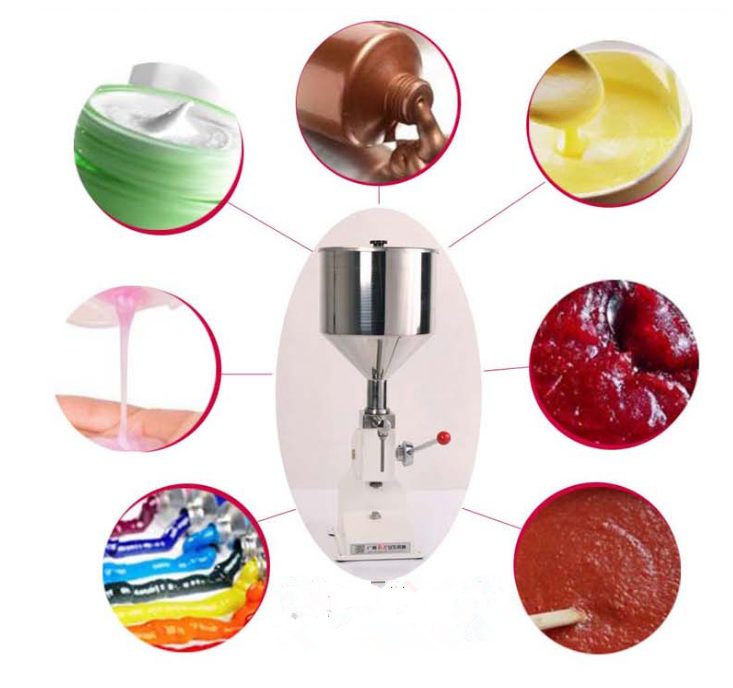

· Typical application: Use for filling paste material, such as sauce, salad, butter & margarine, ketchup, jams, cream, honey, shampoos etc viscosity liquid.
· Suitable for various packing such as bottle, jar, can, cup, bag, barrels,etc.
II. Technical Data
Model |
GJ |
Hopper capacity |
5L |
Filling range |
1-50 ml |
Sealing speed |
0-40 times |
Filling accuracy |
less than1% |
Operating mode |
Press by hand |
Size |
315*215*650mm |
N.T. |
10 KG |

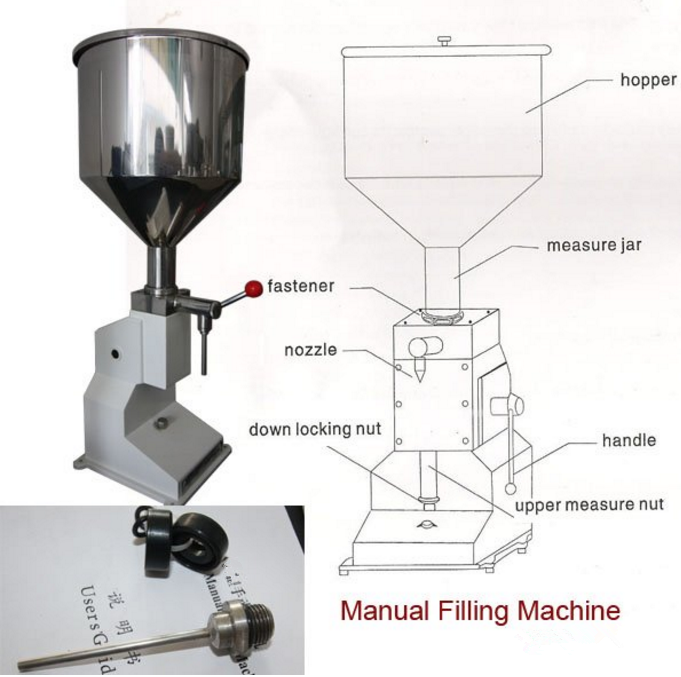

III. Product Structure
