Isobar soda water/lemon water/coca cola filler machine

Updated：2017-08-13

I. Product Information

small carbonated soft drink filling machine is mainly used for all kinds of gas filling after the mixed drinks, carbonated drinks, sodas, carbonated beverage, carbonated soft drink, fruit juice drinks, mineral water.

II. Technical Data

Item

Parameters

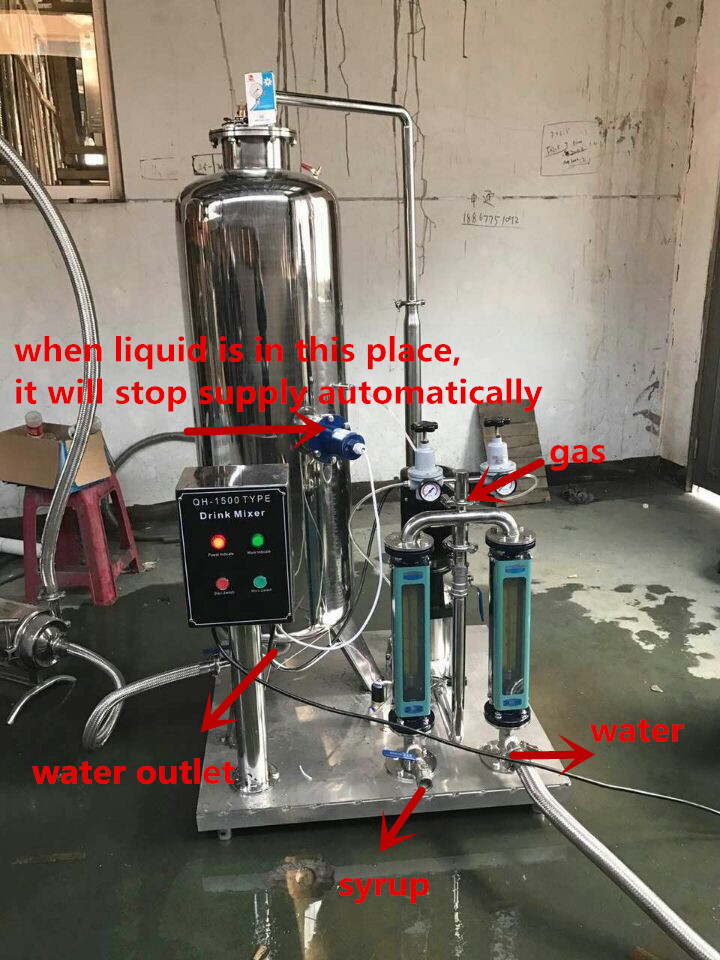

Carbonated mixer

Model:RBJX-1500

Item: drink mix machine

2.Power: 1.1kw

3.Syrup and water proportion:1:2—1:8

4.Carbonic acid gas content

5.Productivity:1500-2000L/h

6.Gas content(volume fraction):≧ 2

7.CO2 purity:≧99%

Entrance pressure: 0.2 Mpa

8.Beverage exit pressure: 0.3—0.5Mpa

9..Water inlet temperature: < 6 ℃

10Syrup inlet temperature: < 4 ℃

11.Weight: 300kg

Liquid store can

1.Store Volume:600L

2.Two pumps

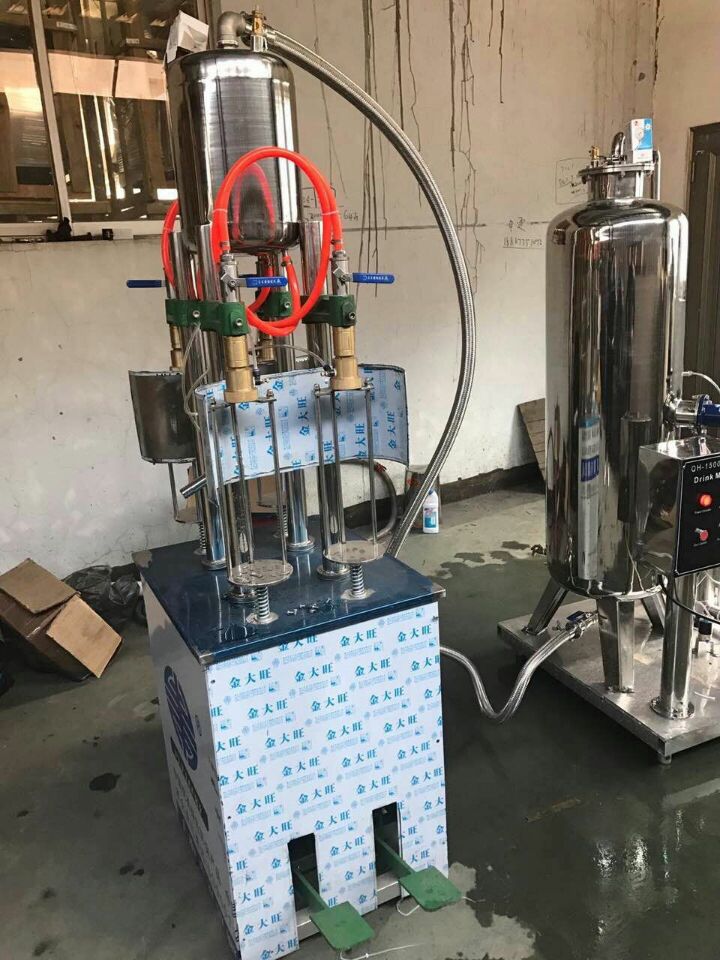

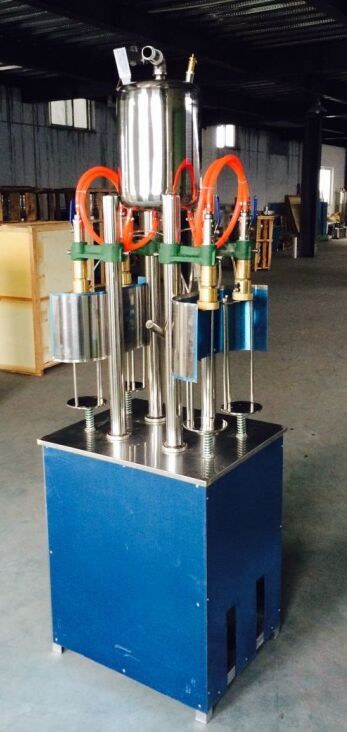

Filling machine

1.Power: 0.55kw

2.Height of bottles: 250mm

3.Bottles diameter:32mm

4.Volume: max 1.25L

5.Capacity :30 bottles/min

6.4 nozzles filling

III. Product Show

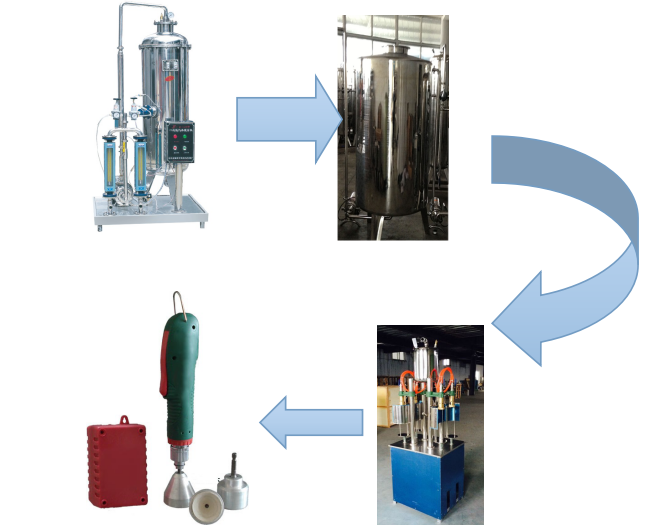

filling machine and mixer machine
