Pneumatic carrot juice/water/oil spout bag filler

Updated：2017-08-13

I. Product Information

Applications

Suitable for all kinds of liquid, such as juice,yogurt,oil, water etc
It is the ideal filling equipment of pharmaceutical, chemical, food, cosmetics and other industries.

Features

1 Control components and cylinders are used brand (Germany FESTO / Taiwan AIRTAC / domestic SNS) components, material contact with 316L, 304 stainless steel, in line with GMP requirements.

2 machine works by air compressor as power source, mechanical operation without collision and hard friction, so suitable for the need for explosion-proof requirements of the occasion, with high security.

3 With quantitative volume measurement and piston push rod structure, high precision filling, the error is small (error <± 0.3%)

4 Filling volume and filling speed can be adjusted arbitrarily.

5 With automatic suction, quantitative filling, uniform discharge, emergency stop, filling volume and speed can be adjusted etc features

6 Filling head with cylinder valve or mechanical valve, filling head design with anti-drip plug, to prevent the filling head drawing, dropping.

7 Parts through the clamp connection, easy to disassemble components, cleaning, maintenance, assembly.

8 Mechanical (manual) and (automatic) block. (Manual) by the foot switch control filling, (automatic) is the mechanical continuous filling

II. Technical Data

Model	HP-ZD100	HP-ZD150	HP-ZD300	HP-ZD500	HP-ZD1000	HP-ZD2500	HP-ZD5000
Air source	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Filling volume	5-100ml	10-150ml	10-300ml	20-500ml	50-1000ml	100-2500ml	200-5000ml
Filling speed	40bottles/min	30bottles/min	30bottles/min	30bottles/min	20bottles/min	15bottles/min	12bottles/min
Filling nozzle	1nozzle	1nozzle	1nozzle	1nozzle	1nozzle	1nozzle	1nozzle
Error	0.2%	0.2%	0.3%	0.3%	0.5%	0.5%	0.5%
Material	SS304	SS304	SS304	SS304	SS304	SS304	SS304
Weight	19KG	21KG	22KG	23KG	28KG	30K	35KG
Machine size	550250280	550250280	630280280	630280280	800320300	800320300	900350320
Packing size	660380350	660380350	960380350	960380350	960380350	1060380350	1160380350

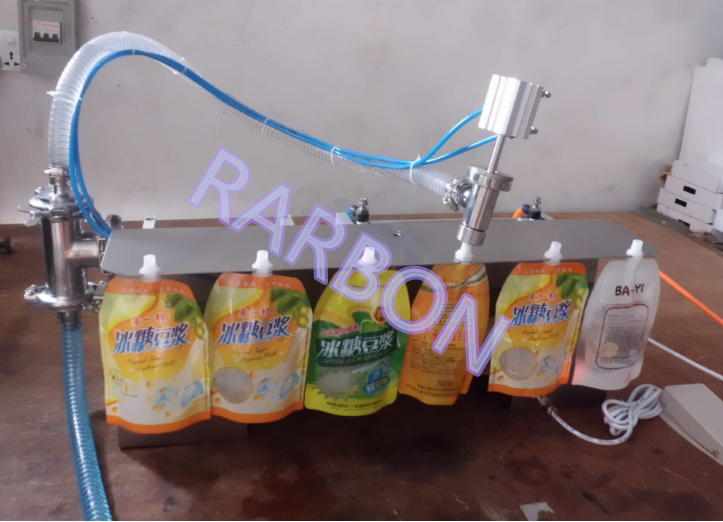

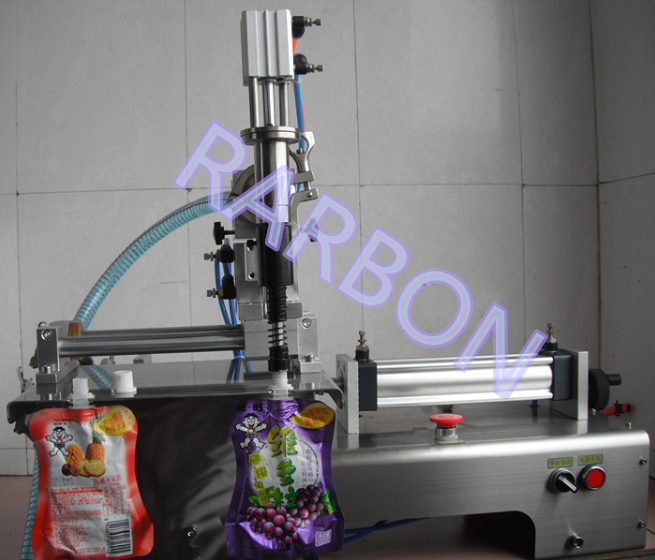

III. Product Show
