I.Product Information
Single nozzle weight filling machine for lubricating oil is suitable for any barrel volume in 4-20L. Its biggest advantage is flexible filling way, high filling speed, accuracy, stable. No limit by oil viscosity or temperature.
It adopts international technology, do filling,electronic weighing metering,electronic display.
Suitable for all kinds sticky and non sticky,corrosion and anti corrosion liquid,middle and large barrel.
Features
1.semi automatic weighing type epoxy paint filling machine adopts micro-computer control, two speed filling, first fast then slow, no overflow
2.Setting the data directly, liquid weighing and filling machine is easy to operate
3.Frequency control,the liquid weighing and filling machine could meet all kinds filling demand. Automatic tare,convenient .
4.The precision of semi automatic weighing type epoxy paint filling machine is depend on the gap size
(means the gap between filling nozzle with container,the oil weight after filling) It’s affect the precision directly.
This machine develops the gap automatic tracking compensation system, automatic amend the filling precision
5.Filling automatic when the barrel comes. No need manual operate.(The liquid weighing and filling machine measure the barrel eight automatically,delay the filling)
II.Technical Data
Item
Single nozzle weight filling machine
Working pressure
0.5-0.8Mpa
Gas consumption
less than 2m3/h
Electricity consumption
4KW AC380V 50HZ
Temperature
10~40°C
Filling mode
electronic weighting mode
Filling speed
50-120 barrels/hour
Filling range
1-20L, 5-50L
Filling accuracy
±0.2%

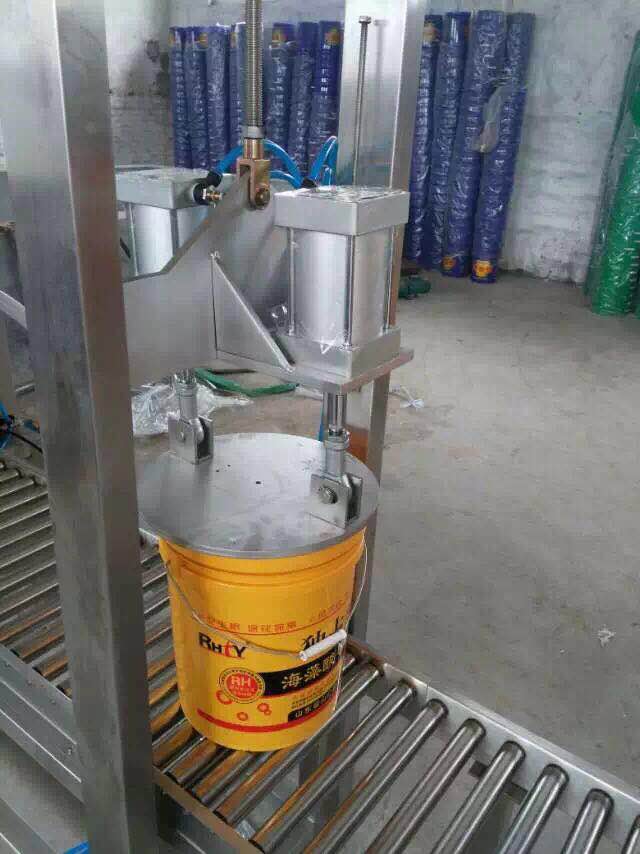

III.Product Show
IV.Suitable for big barrel filling
