Double nozzle liquid barrels cans weighing filling line/oil bucket filler machine

Updated：2017-08-24

I.Product Information

This oil bucket filler machine is our company newest model, advanced technology, easy operation, high filling precision, high automatic.

The oil bucket filler machine is widely used in lubricating, oil, coatings, chemical, water flush fertilizer, edible oil, oil paint, etc.

Feature of oil bucket filler machine

1.Adopts three-speed filling, make sure coating filling machine high accuracy

2.Adopts leak-proof device,no leaking or drawing

3.Cap pressing system adopts unique exhaust cap pressing device,no barrel swell

II. Technical Data

Pressure	0.5-0.8Mpa
Gas consumption	less than 2m³/h
Electricity consumption	4KW AC380V 50HZ
Environment temperature	10~40°C
Filling mode:	electronic weighting mode
Feeder mode	Variable frequency pump delivery; Tower artesian
Filling speed	450-550 barrels / hour (4L) 150-200 barrels / hour (20L)
Adapt to the barrel	4L-20L bucket type is not limited
Filling accuracy	± 0.2%

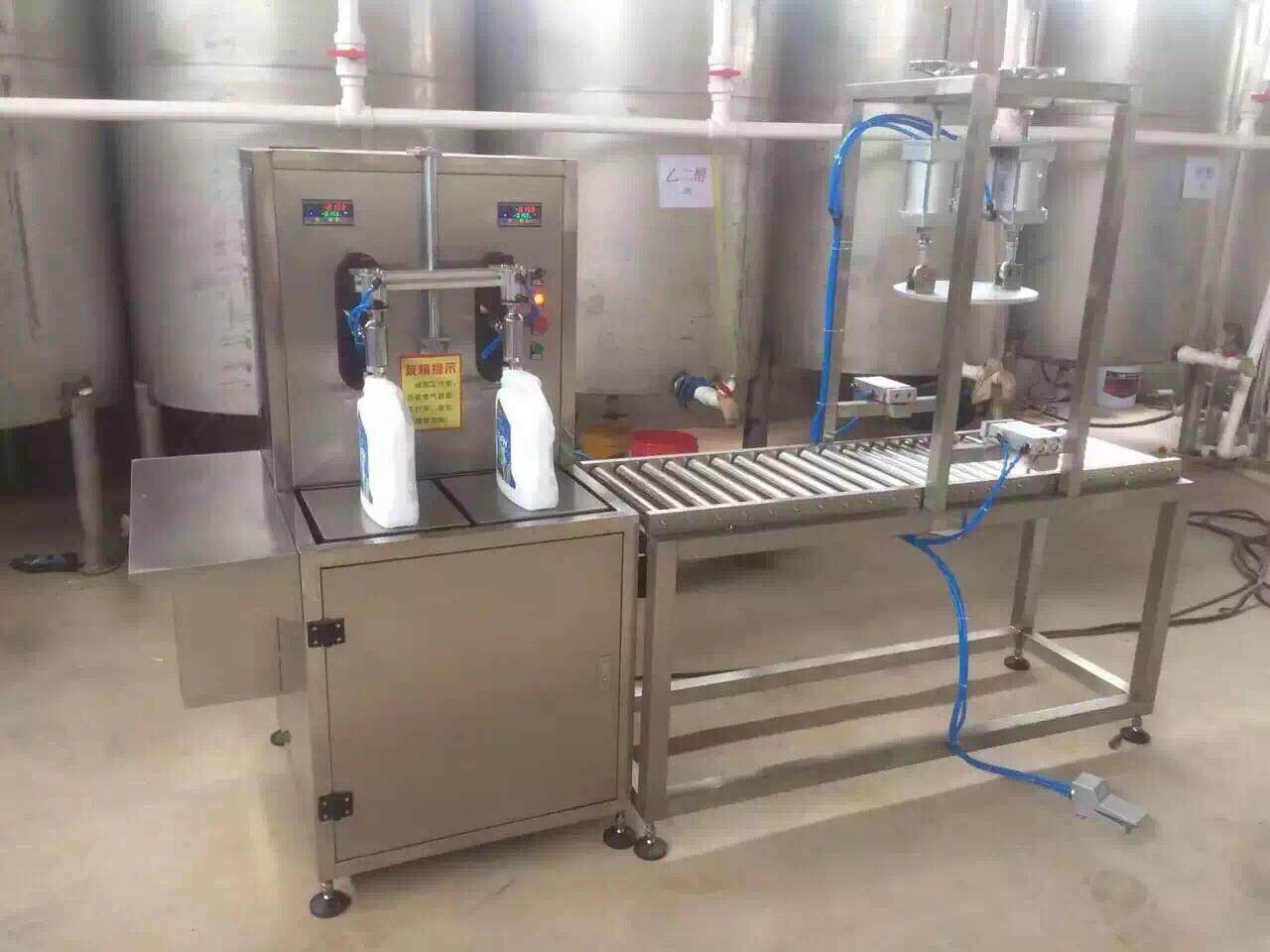

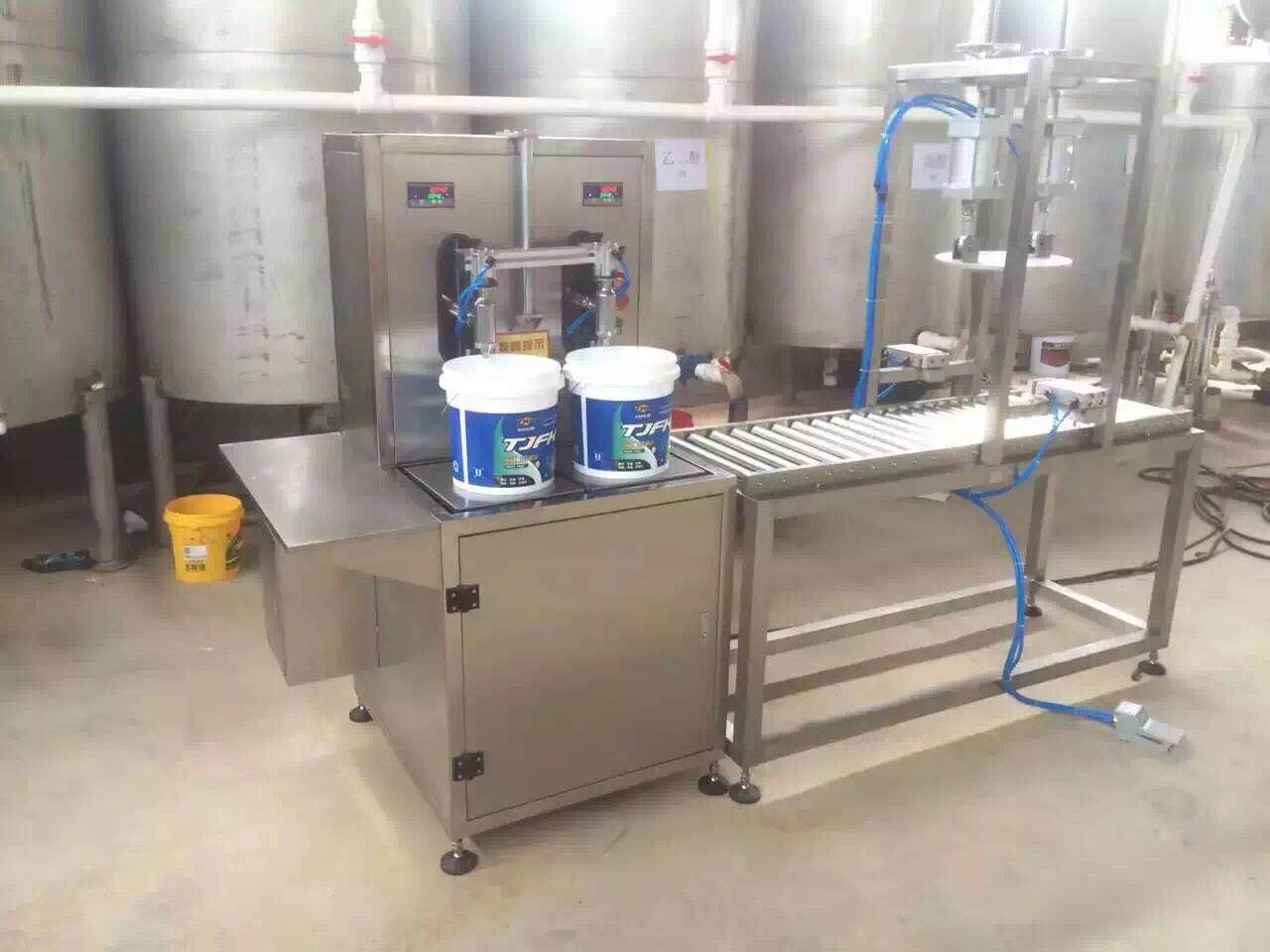

III. Product Show
