I. Product Information
Cap is screwed when contacting with the four friction wheels driven by the two motors at the top. Torsion force can be adjusted to cater for different requirements of the tightness degrees of the cap.
Torsion time can be adjusted to qualify different screw thread.

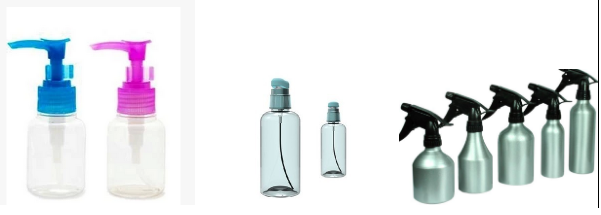

Air source supply is needed. It is widely used for bottles with pump, duck-billed cap or round cap etc capping
Features
1.Manual and automatic mutual switching function
2.Small and exquisite, practical and stable.
3. Easy to operate and adjust the bottle height.

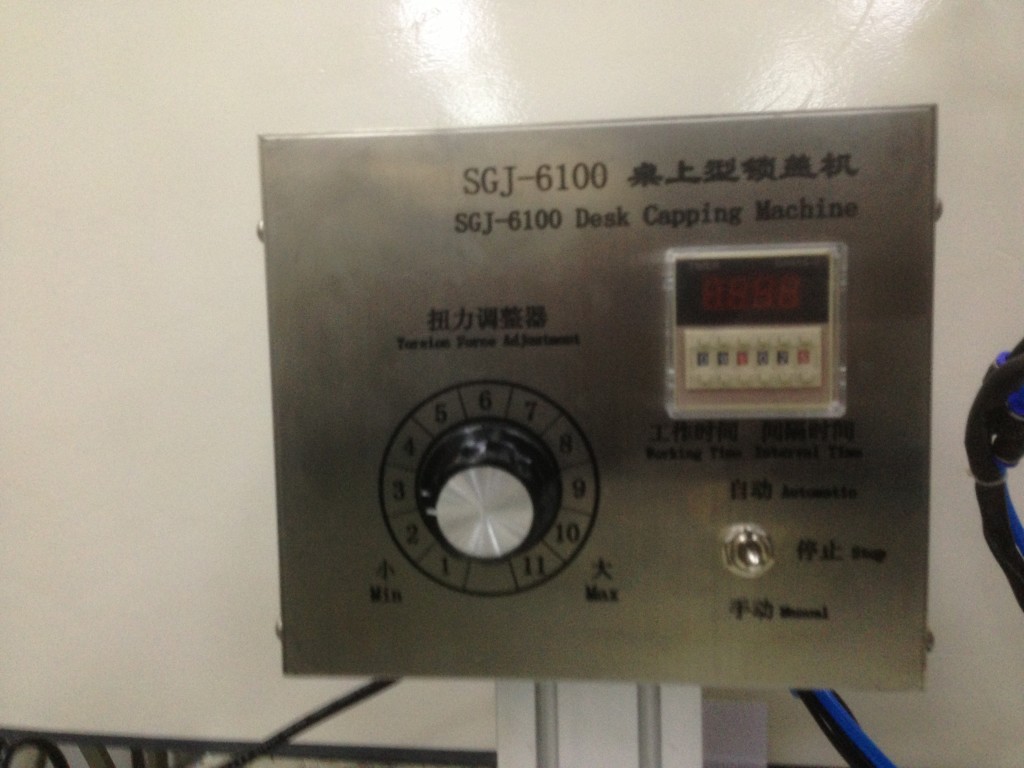

4. The screwing force is easy to set.
5. Especially suitable for small amount and various bottle shape caps
6. It is pneumatic type and work as power by air compressor.
II. Technical Data
Model |
JX |
Capping range |
16-50mm (we can customize as requirement) |
Capping speed |
about 30 bottles/min |
Air pressure |
0.4-0.6Mpa |
Bottle height |
50-400mm |
Machine weight |
30kg |
Machine size |
480*400*580mm |
It is multi functional and suitable for all kinds of caps capping
