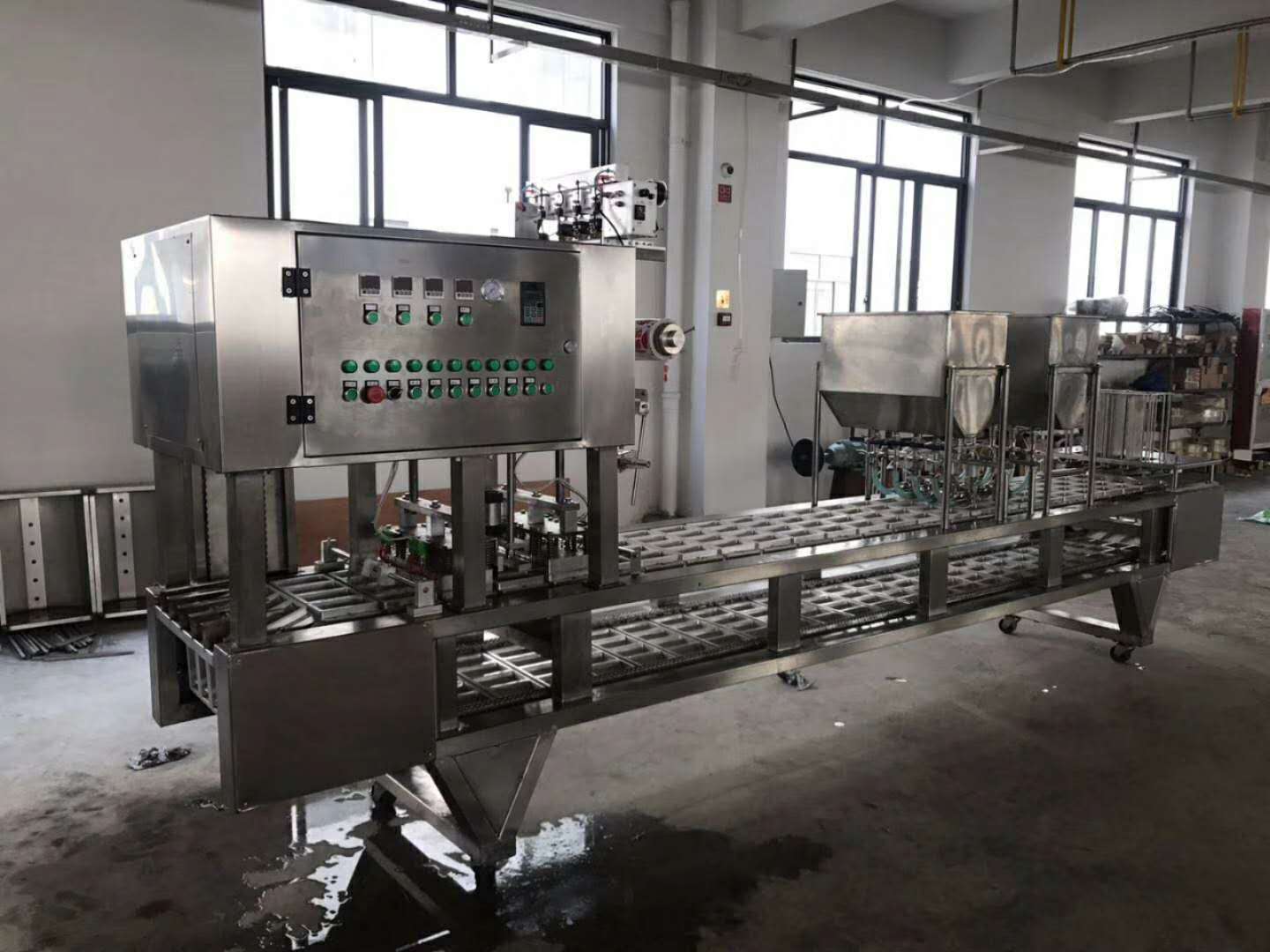

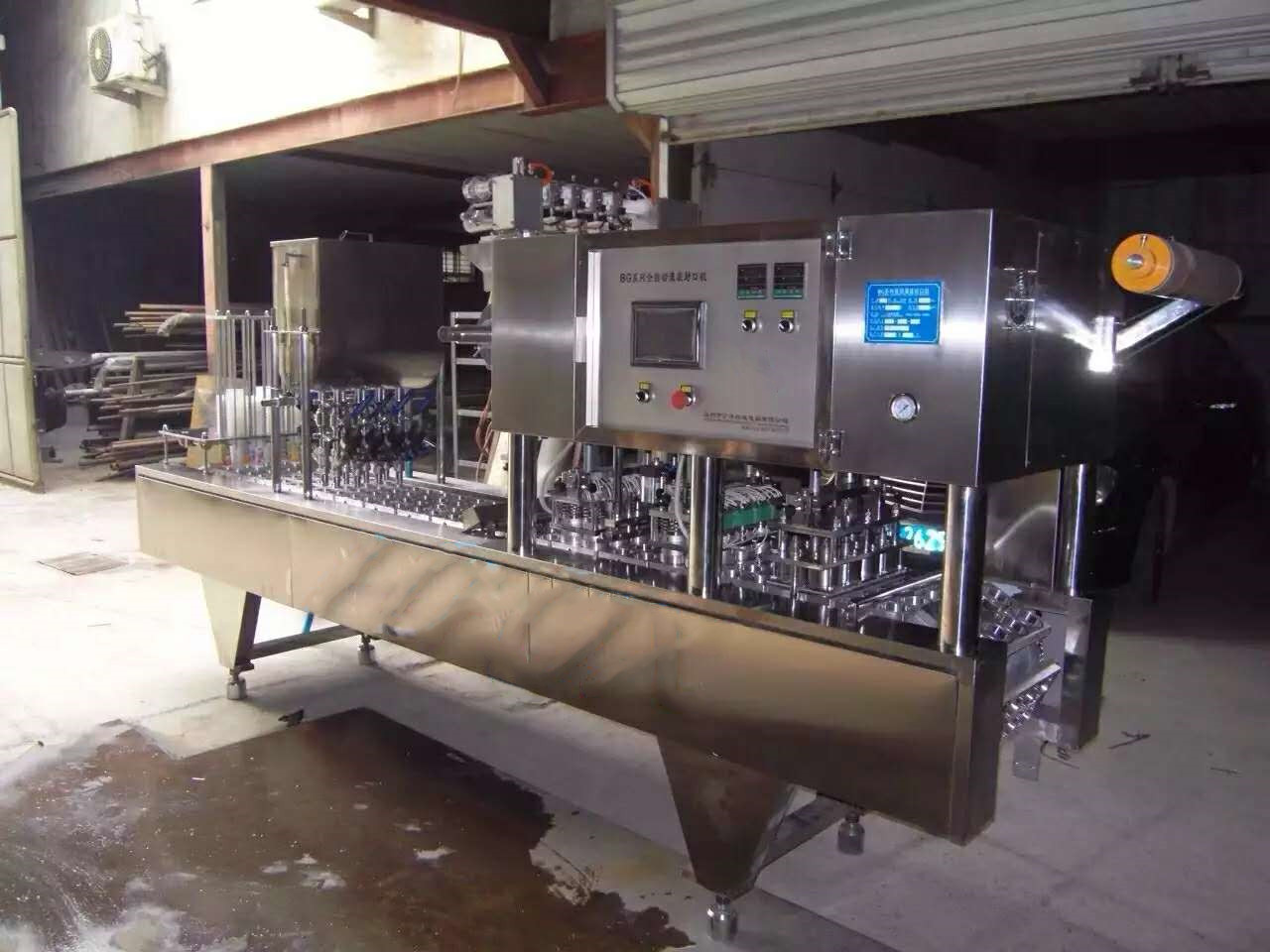

I.Product Information

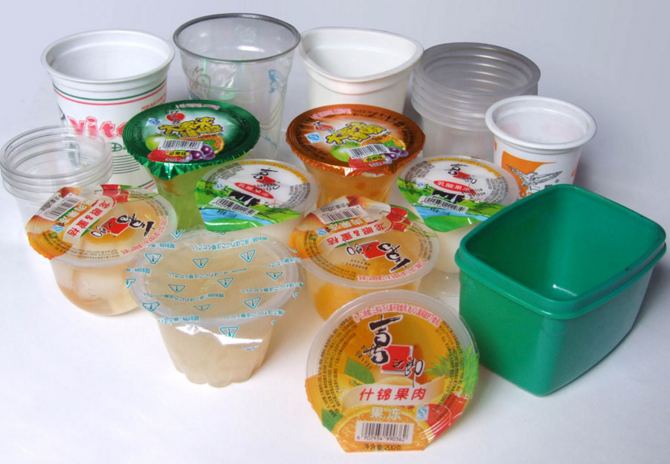

1.Automatic yogurt cup/jelly cup/plastic cup filling sealing machine is suitable for drink, yogurt, jelly, pudding, soya-milk, mineral water etc. plastic cups and boxes filling and sealing automatically

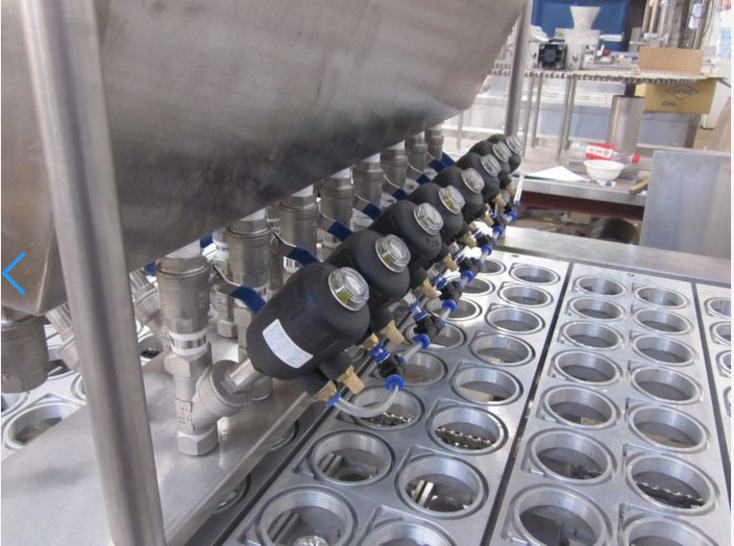

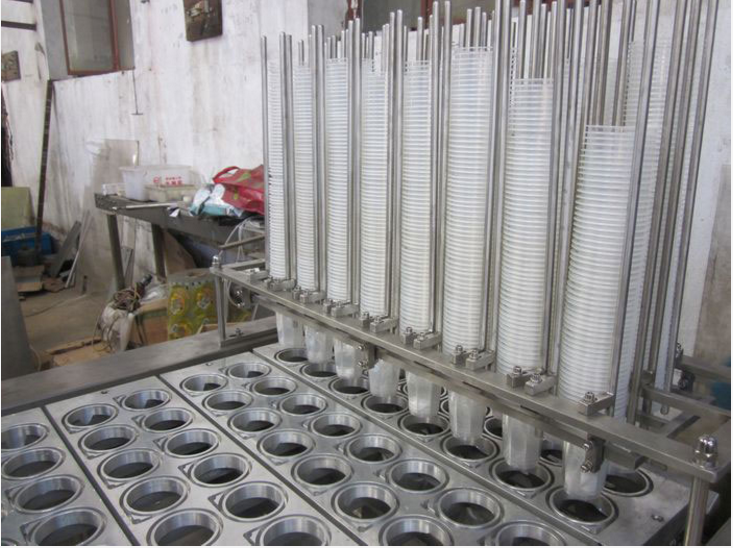

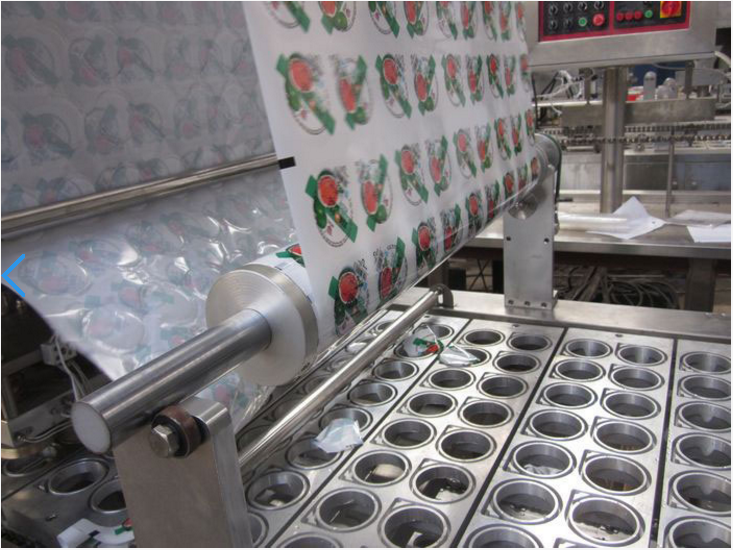

2.Automatic yogurt cup/jelly cup/plastic cup filling sealing machine can do cup dropping, filling, ultraviolet sterilization, film putting, cursor positioning, cup conveying , double heat sealing cutting and cup discharging automatically.
3. Electrical components adopt "Omron", "Siemens", etc. world famous brand in home and abroad. pneumatic components adopt “AirTAC “
4. All parts of whole machine are made of stainless steel, meets GMP standard.
5.Machine can be customized as special requirement. It can add sealing mask, automatic lifting mechanism, auto cup washing .
6. Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance.
7. This machine is multifunctional type.
II.Technical Data
Model
QCF-8
QCF-16
Capacity
7680-9600cups/h
13440-17280cups /h
Filling volume
0-500ml(adjustable)
0-500ml(adjustable )
Voltage
380V50HZ
380V50HZ
Power
1.1KW
1.5KW
Air pressure
0.5MPa-0.75 MPa
0.5MPa-0.75 MPa
Max consumption
0.45m3/m
0.45m3/m
Heating power
6.4KW
11.2KW
Size
3300*1150*1750mm
3800*1150*1750mm
Weight
About1800kg
About2500kg
III.Different cup filling sealing machine
IV.Other series filling sealing machine
We can customize as the capacity ,filling volume and cup size
