I.Product Information
Introduction:
1. Automatic Japanese Omron PLC control system. Automatic cup dropping—plunger filling(leak-proof)—ultraviolet sterilization—cursor positioning—double hot seal—automatic film cutting—automatic film collecting—finished product automatic dropping
2. Machine material: machine frame is made of carbon steel 45#, which is coated by stainless steel metal plate. Other parts of machine are all made of stainless steel 304.
Application and feature:

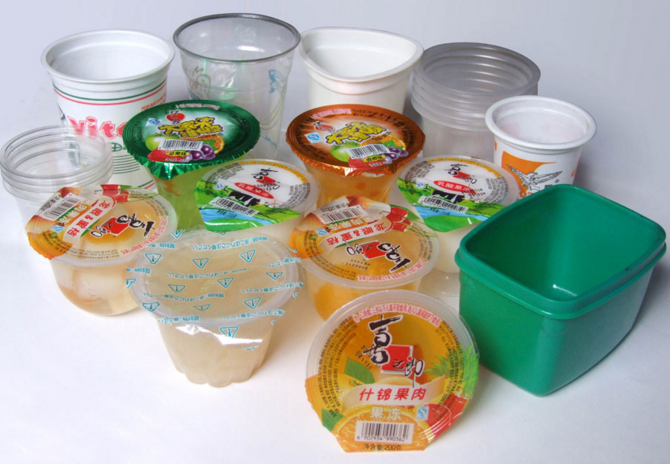

automatic cup filling sealing machine is suitable for kinds of shapes of plastic cups filling and sealing. Packed product is very beautiful and top grade. This machine is fully automatic from cup sending, filling, sealing, film collecting and cup discharging.
This machine is multi-functional model.
II.Technical Data
Model
BG-2
Voltage
220V/ 50Hz/380V
Power
4KW
Gas consumption
0.7m3 /min
Filling volume
50-500ml
Capacity
1600 cups/h
Temperature range
0-300 ℃
Weight
400kg
Size
3000*680*1750mm

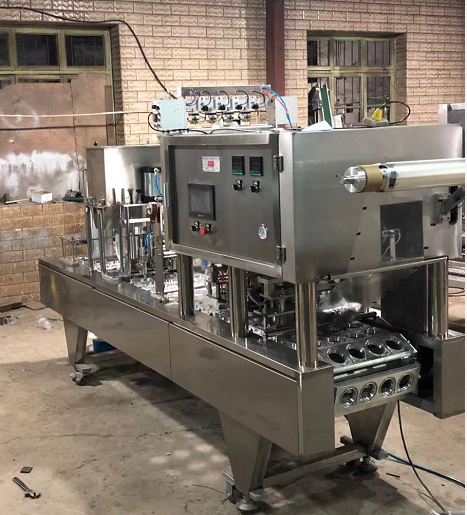

III.Product Show
IV.Different series of cup filling sealing machine
We can customize as the capacity ,filling volume and cup size
