How does the U-Shape filling machine adjust to different product viscosities?

The U-Shape filling machine is designed to handle a wide range of product viscosities. The adjustable cylinder stroke and filling volume can be customized using the magnetic switch, allowing the machine to adapt to different product types and ensure precise filling. This feature is particularly useful for industries that deal with varying product consistencies.

What are the benefits of having dual filling modes?

The dual filling modes of the U-Shape filling machine provide significant benefits in terms of operational flexibility. The pedal (semi-auto) mode allows for manual control over the filling process, while the continuous automatic mode is ideal for high-volume production. This dual capability enables the machine to be used in various scenarios, optimizing production efficiency and meeting diverse filling requirements.

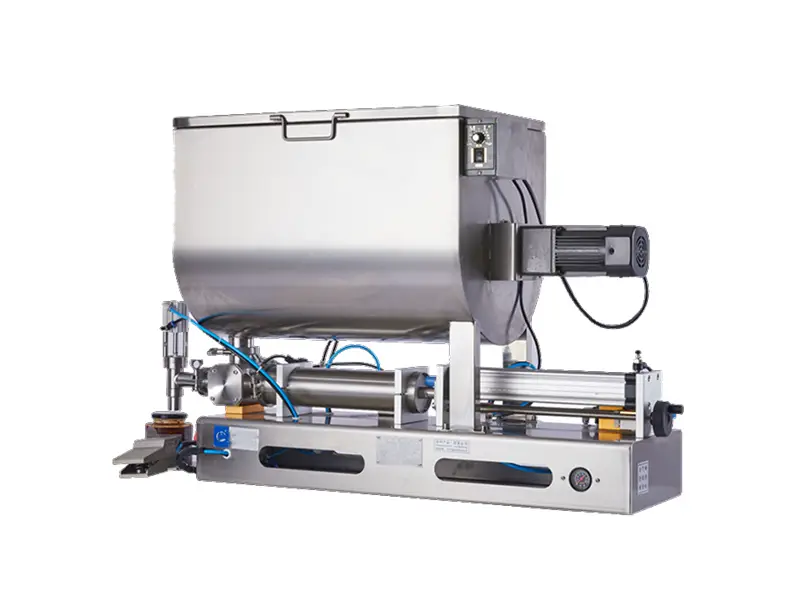

U-Shape Filling Machine

Efficient Semi-Automatic Filling for Diverse Industries

The U-shape filling machine is a versatile semi-automatic piston filling solution designed for a wide range of products, including food items such as chili sauce and peanut butter, as well as daily care products like cream, lotion, and shampoo. Its robust design and adjustable features make it suitable for various filling applications, ensuring precise and efficient operation in different industries.

Hopper Volume

80L

Features

Mixing and Heating available

Control System

It features both foot pedal and continuous automatic modes, which can be switched at will.

Suitable For

Food sauces, daily chemical products, pesticides, and medicines.

Why Choose Our U-Shape Filling Machine for Precision Filling?

The U-shape filling machine operates on a semi-automatic piston filling principle, where the piston is driven by a cylinder to extract and eject the products to be filled. This machine uses a three-way steering valve to control the flow of the product, ensuring precise filling. The cylinder stroke and filling volume can be adjusted by moving the magnetic switch, allowing for customization based on the specific product requirements.

This machine is well-suited for filling a variety of products, including food items and daily care products. Its 80L hopper capacity makes it ideal for large-scale operations, and the availability of mixing and heating features further enhances its versatility. The control system offers both pedal (semi-auto) and continuous automatic filling, providing flexibility in operation.

Compared to other filling machines, the U-shape filling machine stands out with its dual filling modes, which can be changed arbitrarily, and its ability to handle a wide range of viscosities and product types. This machine is designed to meet the specific needs of various industries, providing a reliable and efficient filling solution.

Adjustable cylinder stroke and filling volume for precise control.
Dual filling modes for flexibility in operation.
Suitable for a wide range of products, including food and daily care items.

Key Features of the U-Shape Filling Machine

STEP 1

Semi-Automatic Piston Filling Mechanism

The U-Shape filling machine utilizes a semi-automatic piston filling mechanism, which is driven by a cylinder to extract and eject the products. This ensures precise control over the filling process, reducing waste and ensuring accuracy in product dispensing.

STEP 2

Adjustable Cylinder Stroke and Filling Volume

The machine features an adjustable cylinder stroke and filling volume, controlled by a magnetic switch. This allows for customization of the filling process to suit various product types and viscosities, enhancing the machine's versatility and adaptability.

STEP 3

Dual Filling Modes

Equipped with both pedal (semi-auto) and continuous automatic filling modes, the U-Shape Filling Machine offers flexibility in operation. This dual mode capability allows for seamless switching between different filling requirements, optimizing production efficiency.

STEP 4

Large Hopper Capacity

With an 80L hopper capacity, the U-Shape filling machine is designed for large-scale filling operations. This large capacity ensures continuous operation without frequent refilling, reducing downtime and increasing productivity.

Technical Specifications

Item	Filling Machine
Voltage	110/220V
Power	20w
Filling Range	5-50ml,10-100ml,15-150ml,30-300ml,50-500ml,100-1000ml,300-1500ml,300-2600ml, 500-3500ml,1000-5000ml
Filling Mouth Diameter	3mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 25mm 28mm
Body	Full Stainless Steel Body,Contact Material 304SUS,316SUS Accept Customized
Filling Nozzles	1,2
Work Way	Pneumatic (Air Compressor)
Air Pressure	0.5-0.7MPa
Speed	5-30 Bottle/min (Influenced by Filling Volume and Operate Speed)
Weight	65kg (100-1000ml Model)
