double nozzle magnetic pump juice bottle filler

Products list
Updated:2019-03-18


== Product Show

1,magnetic pump filler is driven by magnetic power, the pump head and the motor is connected without shaft, no need worry about the burnout of the motor because of the high load of the pump.

2,Pump head and motor is imported from Germany, other components are produced in Taiwan, Stable performance, life time is long.

3,Pumper head is made from 316L stainless steel, acid alkaline, corrosion-resistant.

4,The motor run is adjusted by potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately, the filling error is less than 1%.

Filling volume is from 3ml-unlimited filling.

5,Fully functional, can be operated by hand, foot pedal filling, automatic filling. Interval time can be adjusted.

6,Widely applied in various industrious, almost can be used for filling any flow liquid, especially suitable for oil, acid and alkali, high corrosive liquid filling.

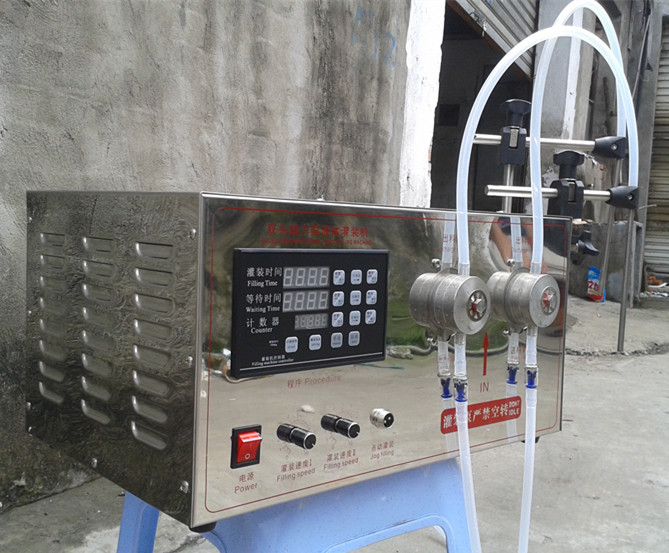

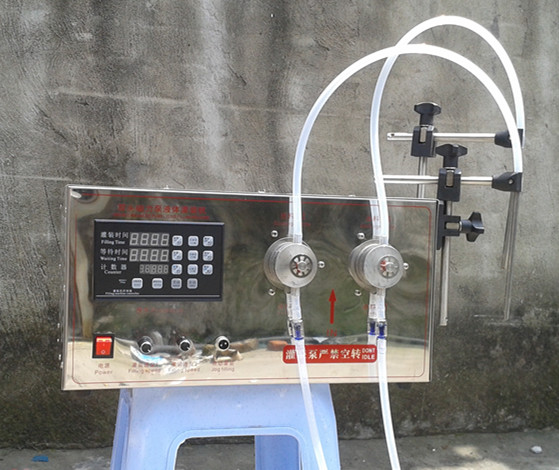

Machine panel function:

Filling time : for adjusting the filling time

Waiting time : waiting time between each filling when the machine is filling automatically .

Counter : filling counter

Filling speed : adjusting the speed

Fiilling machine controller : for adjusting the filling range . When you turn on the machine , push the button "setting" When the filling range reaches what you want ,

push the button "setting" once again .The machine will keep the filling range in memory .

== Technical Data

Model

YG-I/II

Volt

220V 50/60Hz 40W

filling range

more than 5ml best filing range 5-500ml

Filling accuracy

less than ±1%

Size

350*320*170mm

N.T.

20 KG

== Product Show
