== Product Information
curry powder weighing packaging machine can be used to pack different powder materials such as milk powder, starch, pesticide, veterinary drug, additive, condiment, spice etc. the powder with some mobility.
Features
1.It can finish measuring and filling mixing in one time, electronic sensor
control the weighing feedback,there is no limitation for the filling
container.
2.curry powder weighing packaging machine is a machine with mechanical,electrical, optical,
instrument in whole one,single chip control, with functions of automatic quantitative, auto error correction etc.
3. Adopt screw feeding, electric technology, stepping motor and electric scale technology.
4. It can pack between 5-5000g by adjusting electronic scale keyboard and change different standard feeding screws.
5.Workbin is made of stainless steel or organic glass,easy to unpick and wash without tools
(stainless steel workbin is not easy to see filling mixing process ,plastic steel workbin can see filling mixing process)
6. Adopt servo motor and PLC touch screen interface :PLC works stably anti-interference
7. High precision weight filling by auger feeding ,also can match screw feeder which can improve work efficiency .
8.All contacting materials parts made of 304 stainless steel .
== Technical DataPowder weight filling unit parameter
Model |
RBDF-B |
Voltage |
AC380V 900W |
Packaging Accuracy |
±1% |
Packing specification |
5g-5000g(adjust the parts inside the machine) |
Packing speed |
1500-2500 bags/h |
Size |
1000*850*1850mm |
Weight |
280 kg |

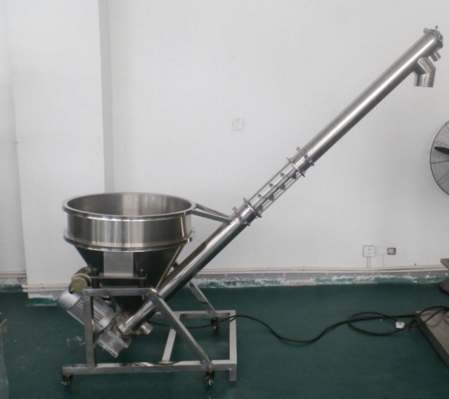

Screw feeder parameter
Model |
DS-3 |
Voltage |
AC 380V 1500w screw motor, vibration motor 200w (220v voltage can be customized) |
Lifting capacity |
1000L/H |
Feeding height |
1600 mm (can be customized) |
Workbin volume |
120 L |
The screw diameter |
110 mm |
Feed tube diameter |
115 mm |
Dimension |
860 * 755 * 840 mm |
Weight |
150 kg |
== Product Show
