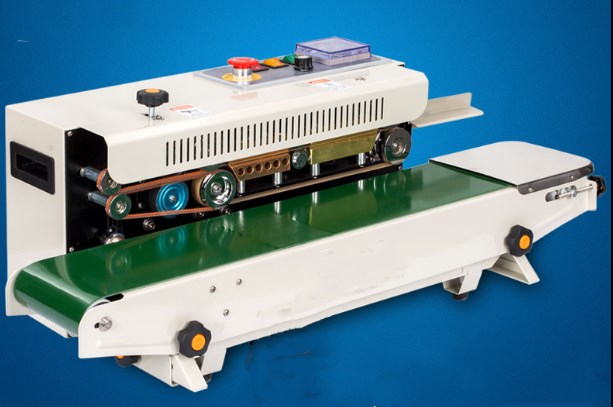

continuous band plastic aluminum foil bag heat sealer machine

Products list
Updated:2019-03-16

== Product Information

1.This machine can be equipped with the production line, sealing length with no limit and r various kinds of plastic films sealing such as PP ,PE ,PVC and aluminum foil film sealing .

2.As to the series plastic bag sealing machines, there are horizontal type and vertical type, the horizontal type is for packing and sealing of drying goods; the vertical one is used for liquid goods.

3.The sealing process: conveying→ feed in→ sealing →cooling →printing without color

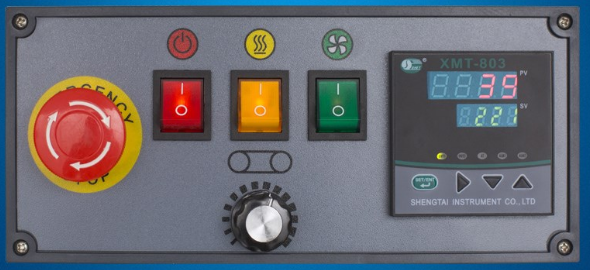

4. Constant temperature control and automatic conveying

5.Sealing speed and temperature can be adjusted as film thickness to ensure sealing quality

6. Stepless speed regulating transmission motor

7 High productivity, good sealing, reasonable structure, easy operation and so on.

== Technical Data

Model

DBF-900

 Volt

110V  220V 50Hz/60Hz

Sealing width

5-15mm

Thickness Sealing bag

0.03-0.80mm plastic bag

Sealing length

Any length

Sealing capacity

55 bags/min (100 mm)

Sealing speed

0-13m/min

Conveyor belt size

775*140mm

Printing numbers

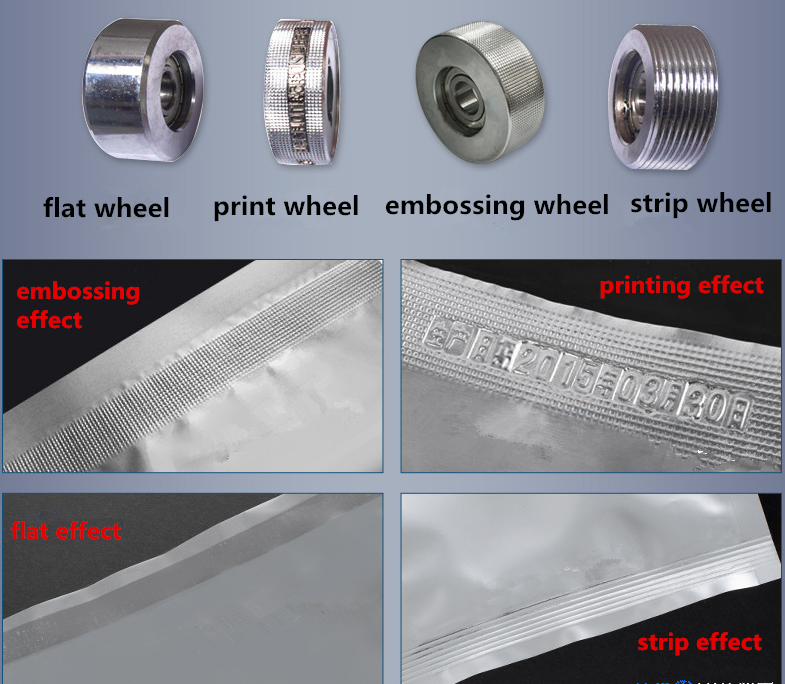

≤39(font :4 type)

Temperature range

0-300℃

Cooling Method

By air cooling

Size

810*370*310mm

W.T.

17.5 KG

== Product Show
