== Product Information
The equipment is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

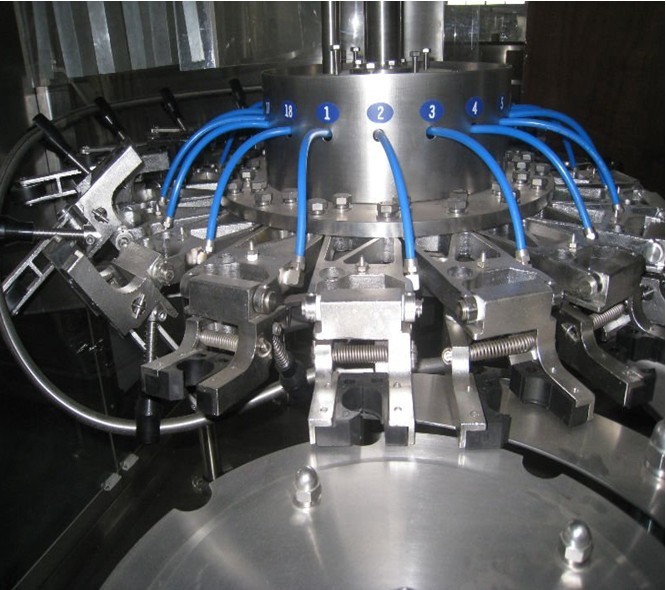

Spring cramps are used in the bottle washing process. The empty bottles can be turned over180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
== Technical Data
Model
XGF-12-12-1
Filling capacity
250-1500ml
Filling speed
2000 bottle/h
Bottle diameter
50-90mm
Bottle height
130-320mm
Bottle cap
30mm
Power
2.45Kw
Overall Dimension
2810×1070×1980mm
Weight
1500KG

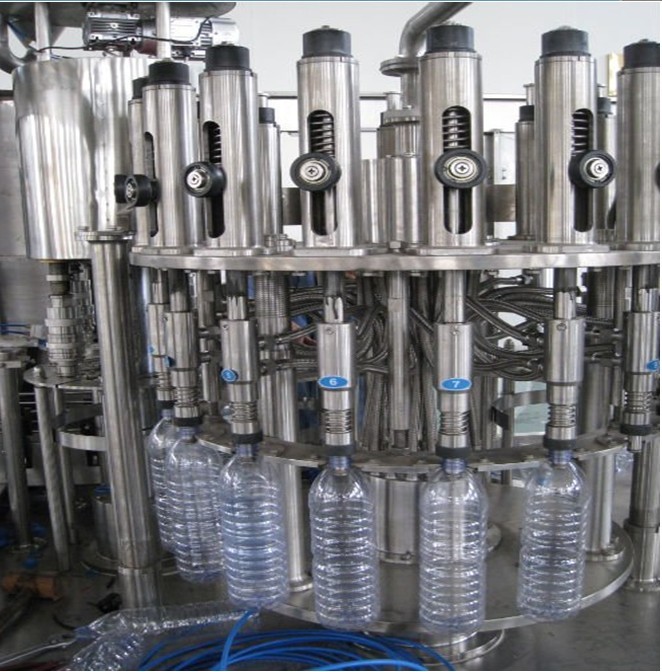

== Product show
