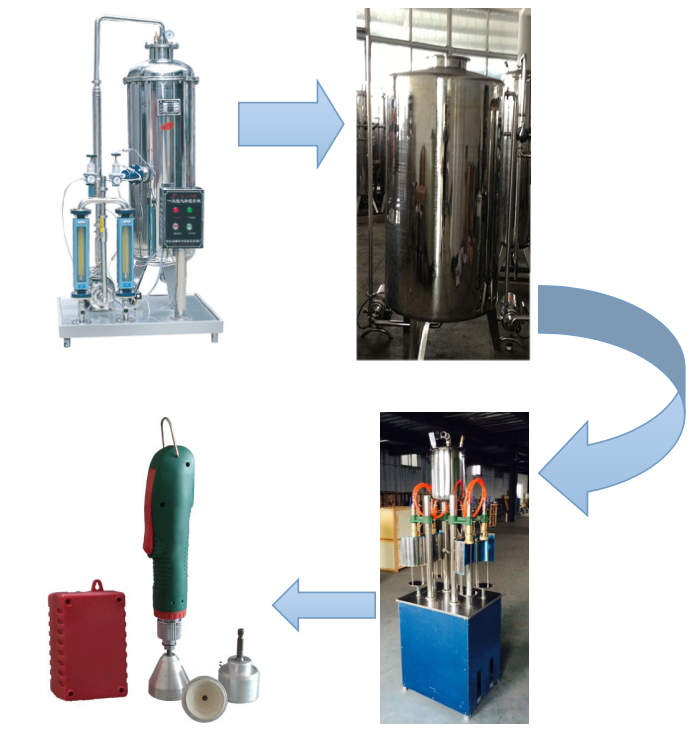

=== Mixing---> storage --->filling ---> capping
=== Technical Data

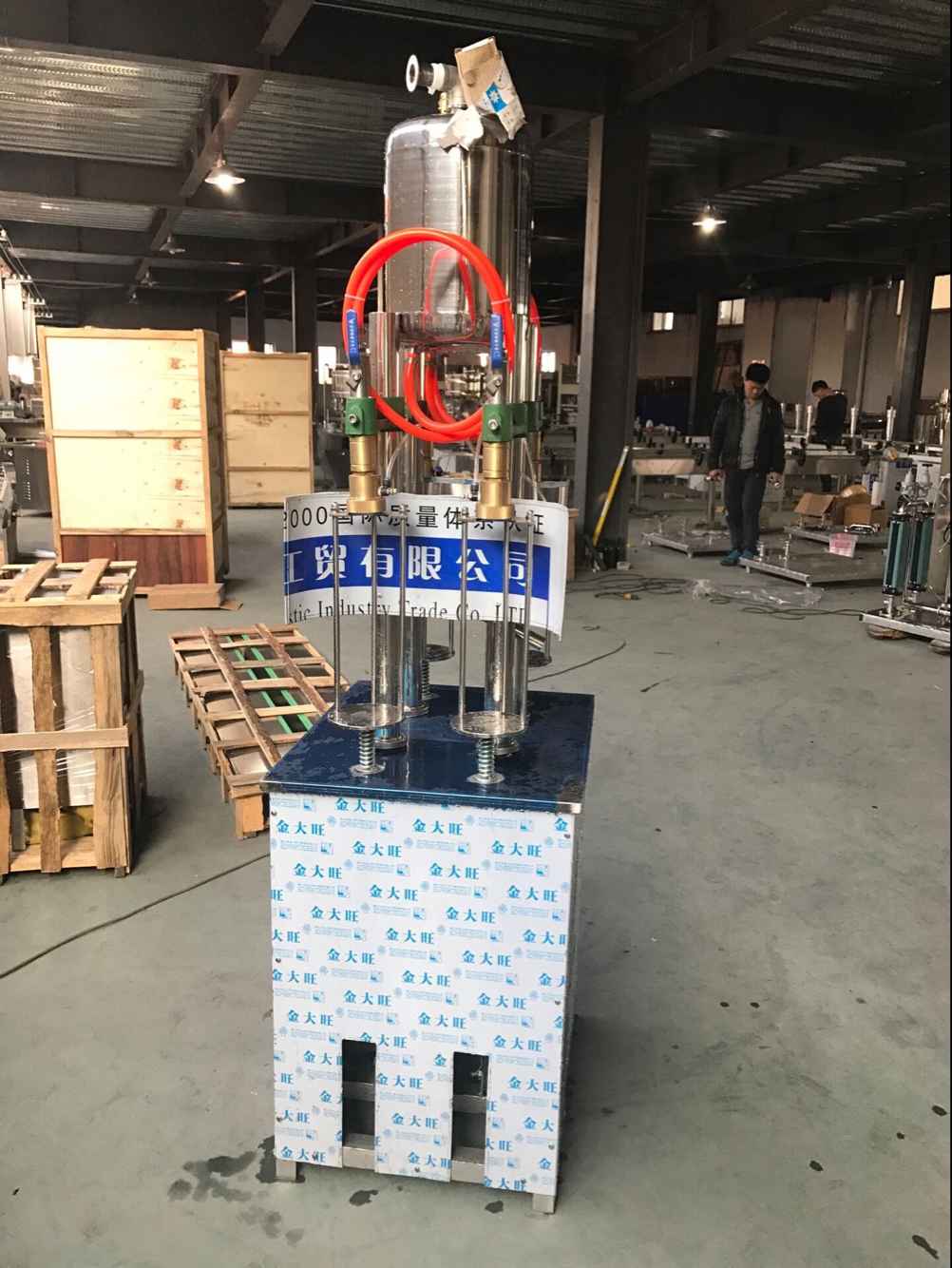

Isobar filling machine
Filling machine parameter
Model |
GCP-4 |
Power |
0.55KW |
Filling volume |
Max 1.5L |
Capacity |
1000-1200bottles/hour |
Bottle height |
250mm |
Size |
960*740*1680mm |
Weight |
140KG |

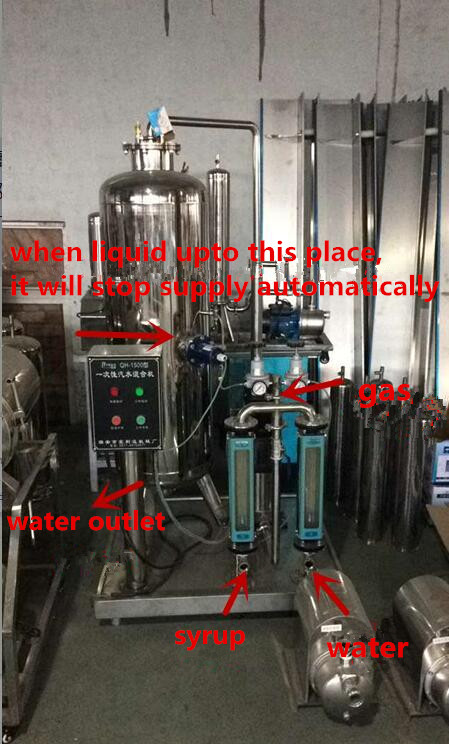

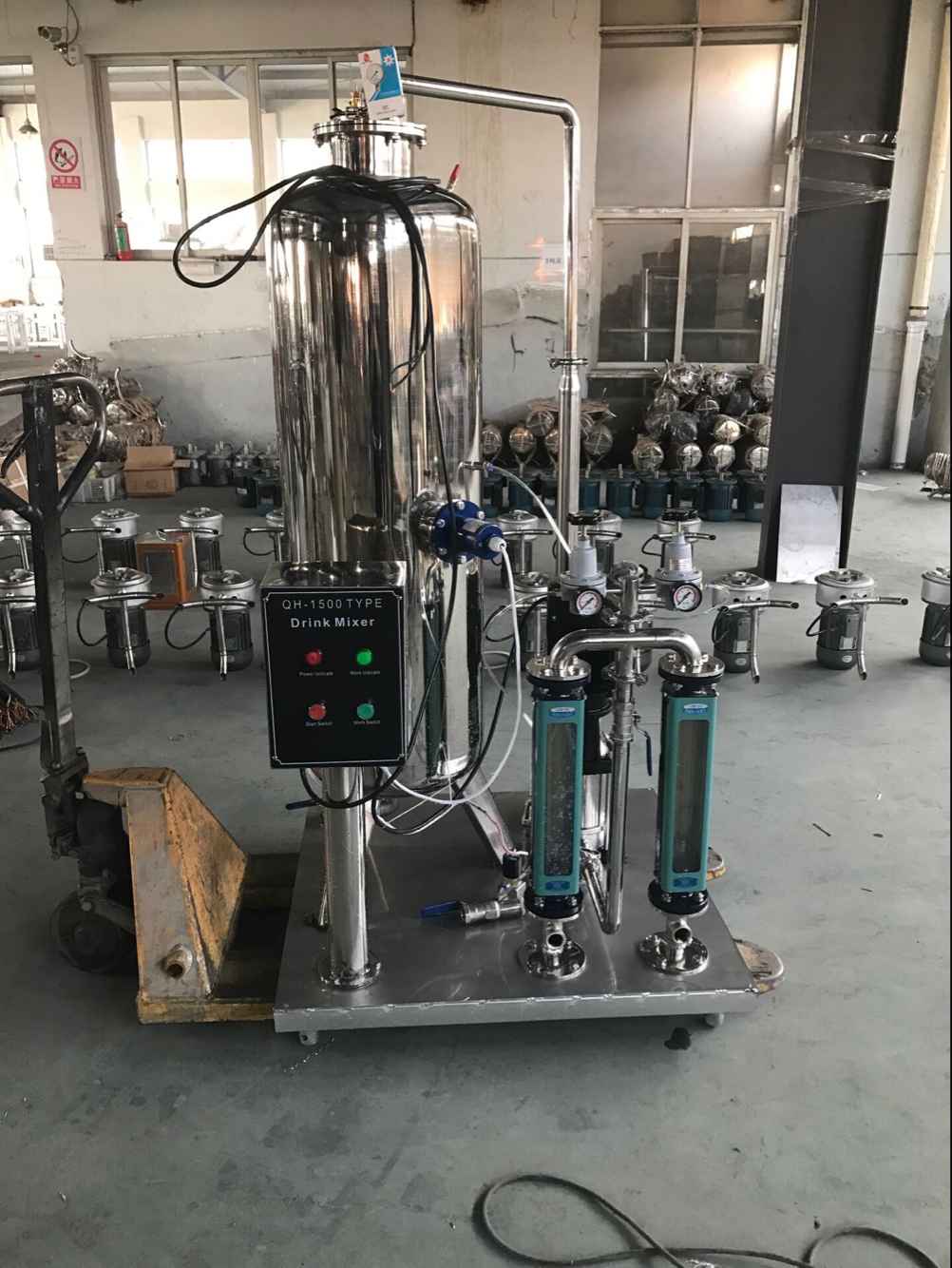

Mixer machine parameter
Technical Data |
Material requirement |
Model:QHS-1500 Item: drink mix machine Beverage exit temperature < 6 ℃ Beverage exit pressure:0.3-0.5MPa Carbonic acid gas content:3G.V Productivity:1500-2000L/h Syrup and water proportion:1:2—1:8 Weight: 300kg
|
CO2 purity:≧99% Water entrance pressure: 0.2 Mpa CO2 inlet pressure:0.28-0.35MPa Water inlet temperature: < 6 ℃ Syrup inlet temperature: < 4 ℃
|
Mixing machine instructions
