Continuous inflatable puffed food plastic bag sealing machine

Updated：2017-08-17

I.Product Information

Continuous band sealing from auto flushing to auto sealing

Mainly used in the packaging of puffed food, the machine fills the bag with gas before sealing to inflate the bag in order to protect goods during conveyance.

Features

1.This machine can do gas flushing , continuous sealing, date printing automatically.

2.Suitable for different films plastic bag like PP, PE, LD, LLDD, HM, HM HD, Aluminum foil laminated pouches, polyester poly laminated pouches can be easily sealed in continuous process.

3.Food in bag can be smash-resistant with gas flushing to prevent

food bag from the damage during transport.

II.Technical Data

Model	900C
Voltage	220V50HZ/60HZ
Power	750w
Sealing speed	0-12m/min
Sealing width	6-12m
Loading max weight	3kg
Film thickness	0.10-0.80mm
Sealing capacity	55 bags/min (100 mm)
Conveyor belt size	775×140mm
Cooling method	By air
Temperature range	0-300°C
Temperature control	Thermocouple type precision temperature
Weight	65kg
Size	1060640970mm

III.Product Show

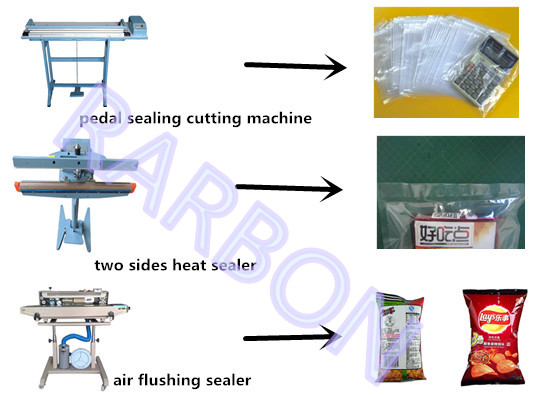

IV.Different series of sealers
