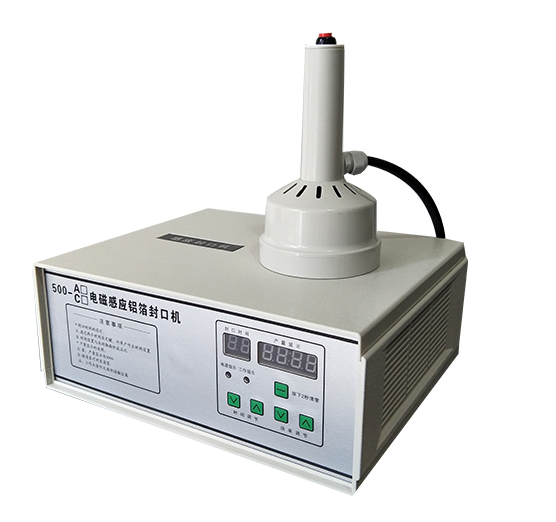

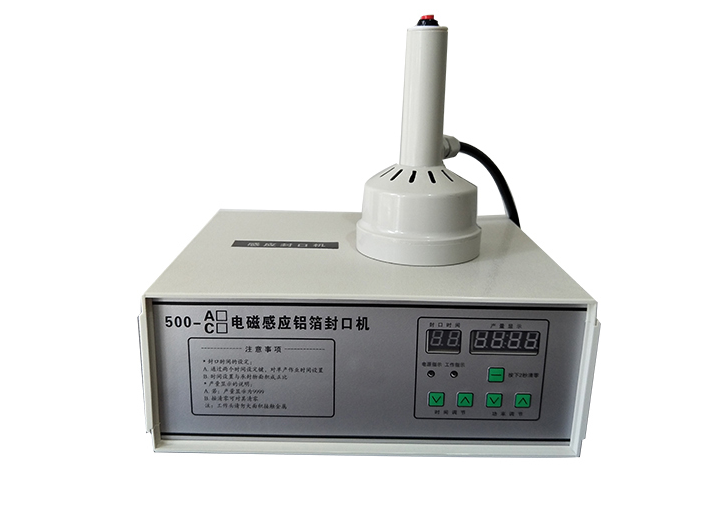

Portable aluminum foil bottle induction sealer

Updated：2017-08-17

I.Product Information

Portable aluminum foil bottle induction sealer is suitable for a plastic, glass, any non-metallic bottles, cup-shaped container for induction heat sealing.

1. Portable aluminum foil bottle induction sealer utilizes electro magnetic induction principle to produce instant high heat to melt aluminum foil.

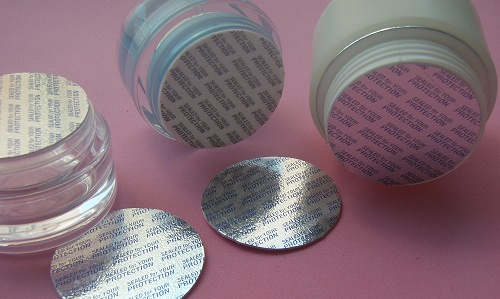

2. Then it adheres to the bung hole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time.

3. It is widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant and cosmetics etc.

II.Technical Data

Model	YF-500A	YF-500B	YF-500C
Volt	220V±10% 50/60Hz	220V±10% 50/60Hz	220V±10% 50/60Hz
Power	500 ( W ), less then 8 ( A )	500 ( W ),less 8 ( A )	500 ( W ),less then 8 ( A )
Control circuit	the transistor digital circuits	the transistor digital circuits	the transistor digital circuits
Operating mode	Handheld type	Handheld type	Handheld type
Cooling mode	Forced cooling fan	Forced cooling fan	Forced cooling fan
Sealed diameter	φ20~φ100 ( mm )	φ15~φ35 ( mm )	φ60~φ130 ( mm )
Sealing time	0~3.9s	0~3.9s	0~9.9s
Size	342915 ( cm )	342915 ( cm )	342915 ( cm )
Weight	5( kg )	5( kg )	5( kg )

III.Product Show

IV.Automatic and manual type aluminum foil sealer
