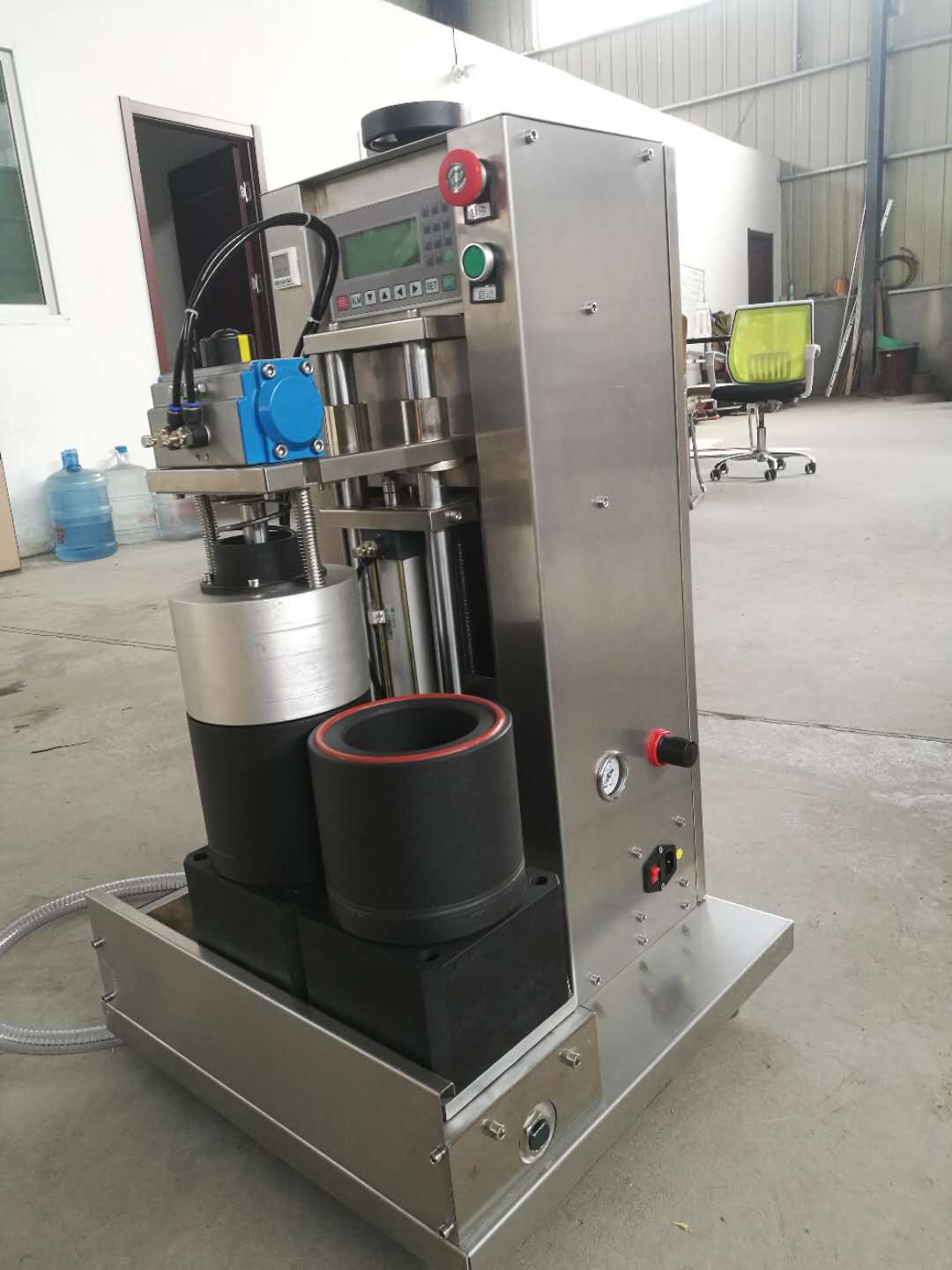

Glass can/jar vacuum capping machine

Products list
Updated:2017-08-13


I. Product Information

Features

1. micro-computer control, digital display

2. Electrically controlled movement, positioning device, easy operation

3. suitable for various locking caps with different shapes and specifications

4. the capping speed and tightness can be adjusted for different caps

5. Can be customized as requirement.

Application

1) capping for plastic lids of various jars and cans such as sauce can,sea food can,fruit can,vegetable can, bean products can etc.

especially for the products which needs vacuum packing,high temperature and high pressure sterilizing products.

2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which

can highly improve productivity and product quality.

II. Technical Data

Model

ZK-2

Voltage

220V 50HZ/60HZ

Working air pressure

0.4-0.6MPa

Bottle diameter

Φ 40-Φ 85mm

Cap diameter

20-85mm

Bottle height

60-180mm

Production capacity

20 bottles per minute

Tightening torgue

3-10Nm

Working air pressure

0.4-0.6MPa

Breakage rate

<1%

Weight

67kg

Machine size

530*470*760mm

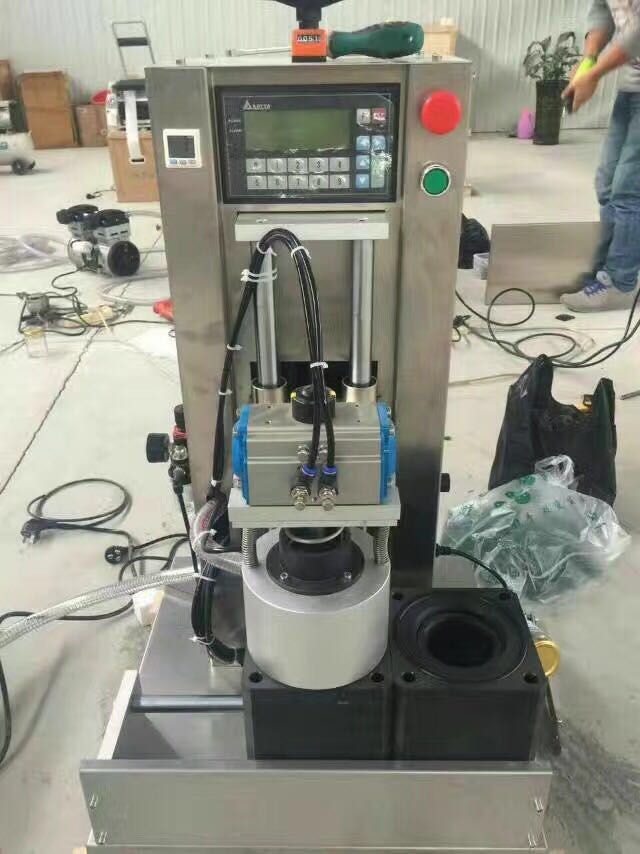

III. Product Show
