I. Product Information

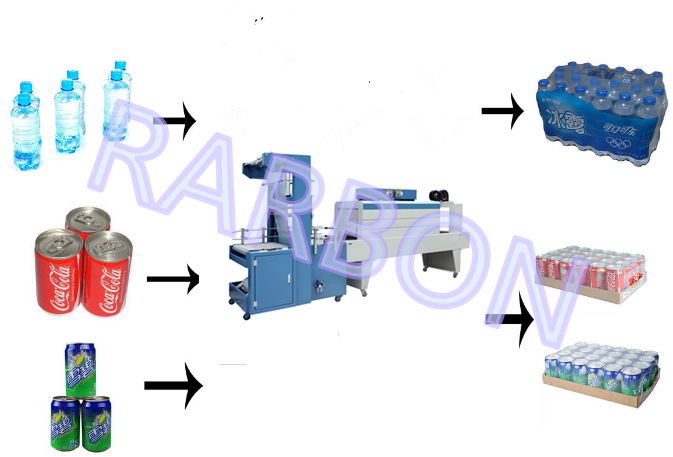

PE film thermal shrink wrapping machine is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels.
The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.
Features
	1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2 The input position is adjustable, base on the size of products packaged.
3. Intelligent temperature controller performs stable.
4.Large power conveyor motor, with stepless speed regulating, ensures smooth feeding.
5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
7. The size of tunnel can be customized as your request.
II. Technical Data


						Model

						BP-5040

						BP-6040

						Shrinking stove size

						1800*500*400mm

						1800*600*400mm

						Power

						380V 18kw

						380V 22kw

						Carrying capacity

						40 kg

						40 kg

						Conveyor width

						465mm

						565mm

						The length of outlet

						800mm

						800mm

						The length of entrance

						200mm

						200mm

						Machine weight

						220Kg

						270Kg

						Outer dimension

						2800×690×1075mm

						2800×840×1375mm













































































III. Product Show


Shrinking machine

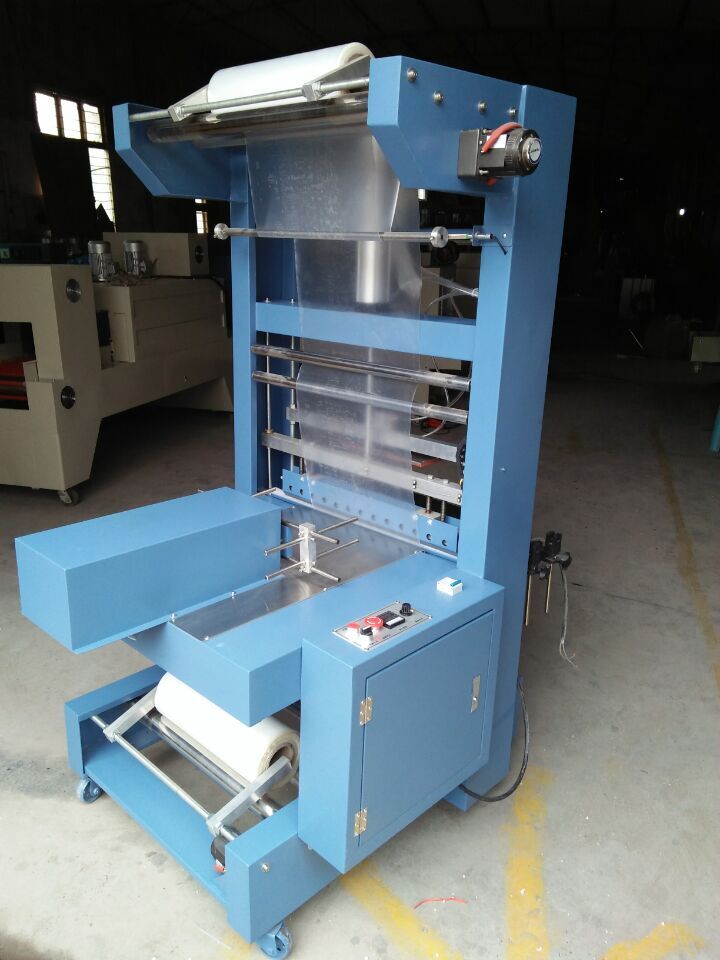

Film covering machine
