Bottle body film shrinking machine

Products list
Updated:2017-08-17



I.Product Information

Application

It is mainly used to shrink plastic films on the lid of bottle
It is used to shrink bottle labels.

Introduction

This series PVC Cap Shrinking machines are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup.

The label is shrinking on the top or wrapping the whole bottle neck is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.

Intelligent shrink temperature control.

Conveyor speed is adjusted by stepless adjustor.

II.Technical Data

Model

BSS-1538C

Voltage

220V /50-60HZ

Power

9KW

Tunnel size (L x W x H)mm

1500x200x380

Max.Packing size(mm)

Dia120 x 350H

Conveyor motor

AC90W/220V

Conveyor speed

0-10m/min

Max.loading

15KGS

Shrink film

POF,PVC,PP

Weight

96KGS

Dimension (mm)

1500x350x1500

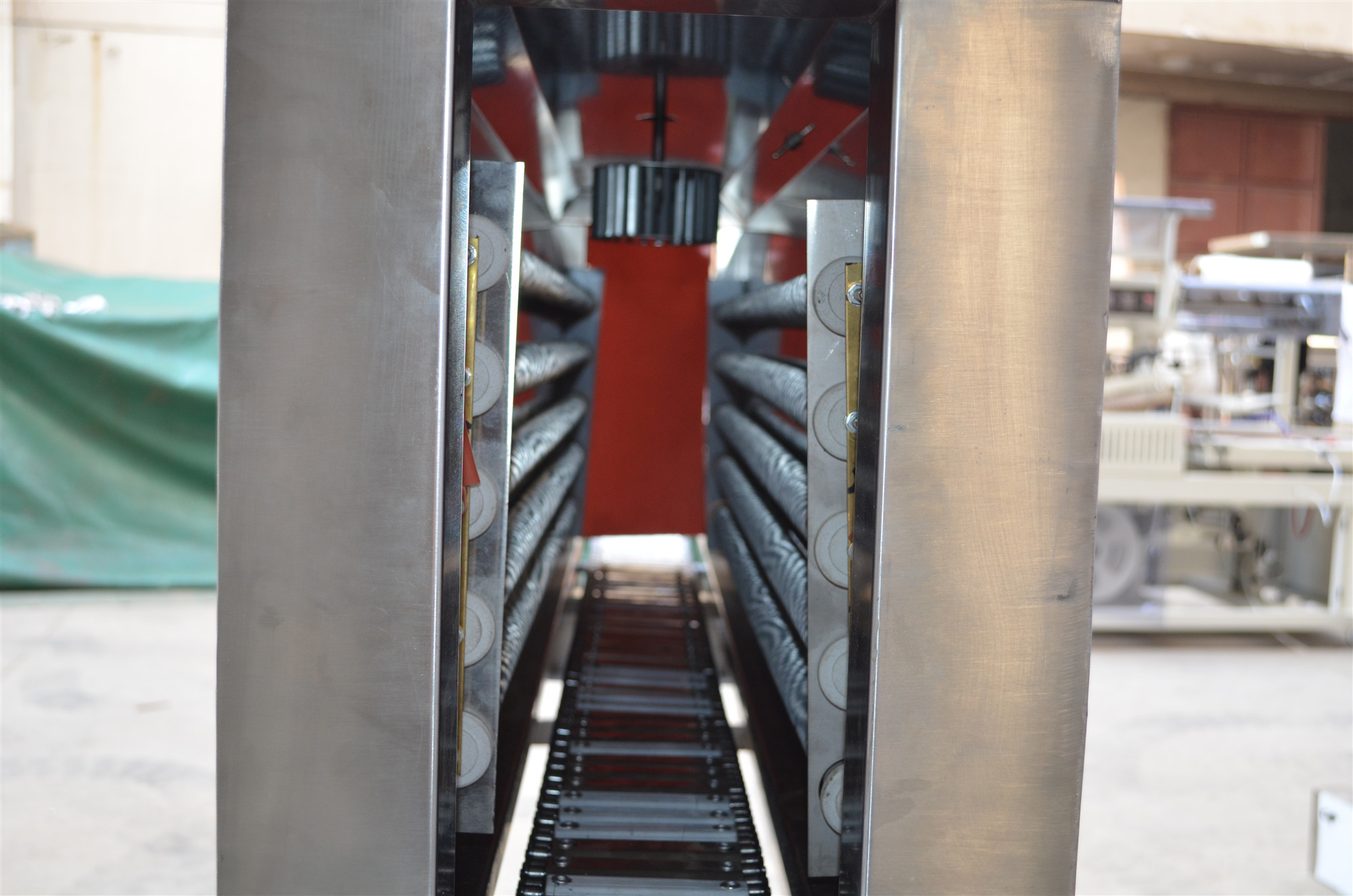

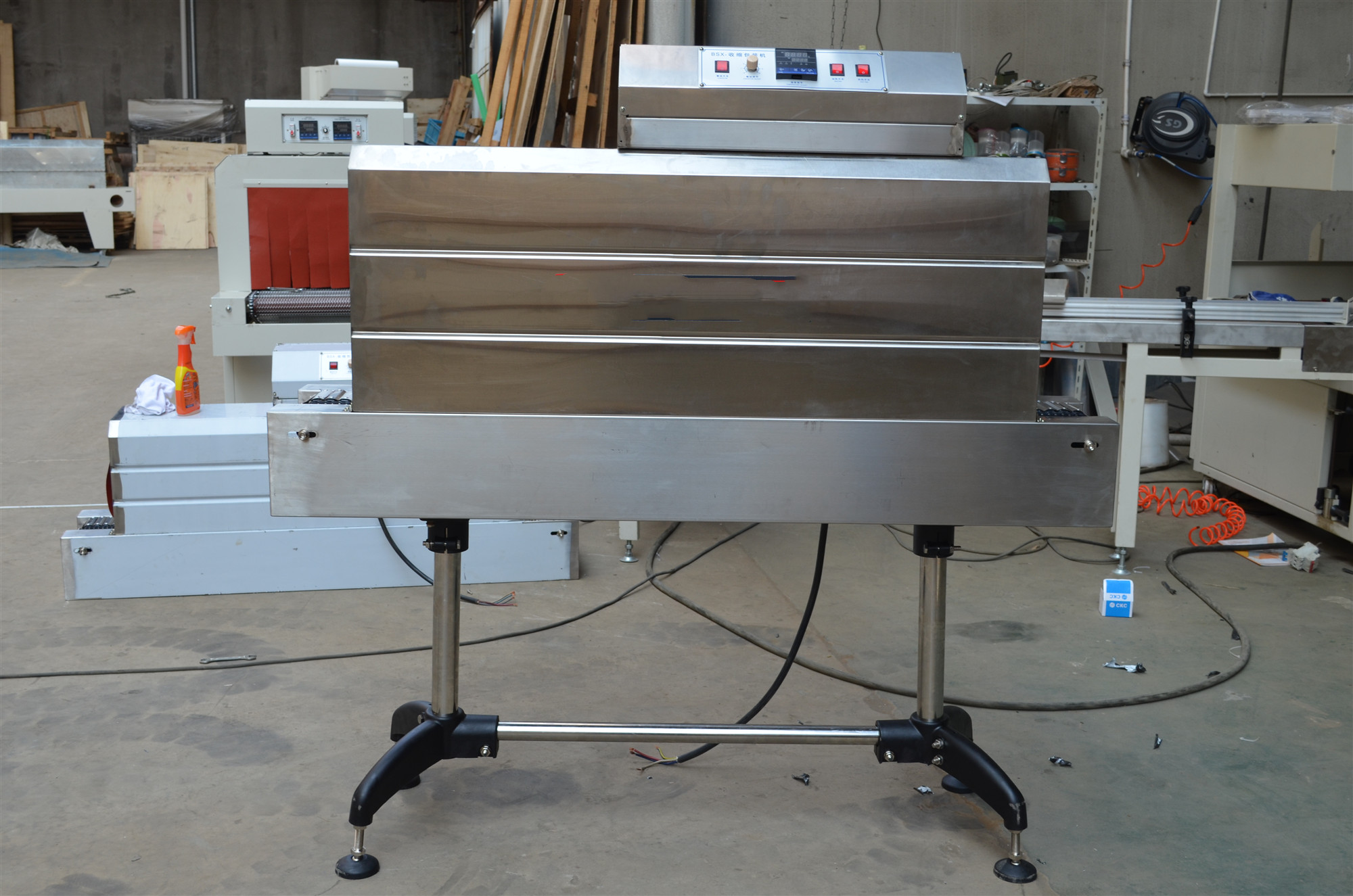

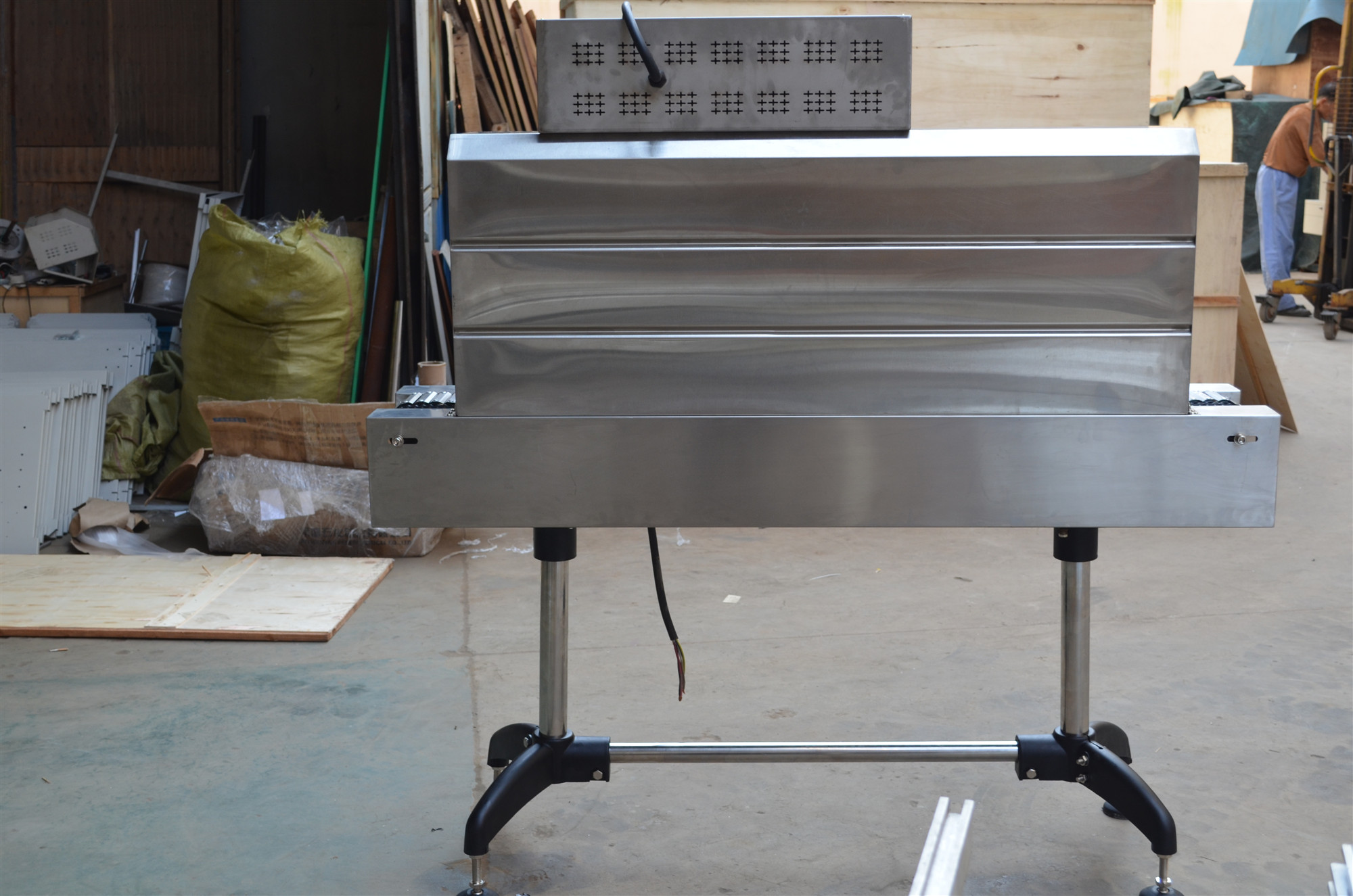

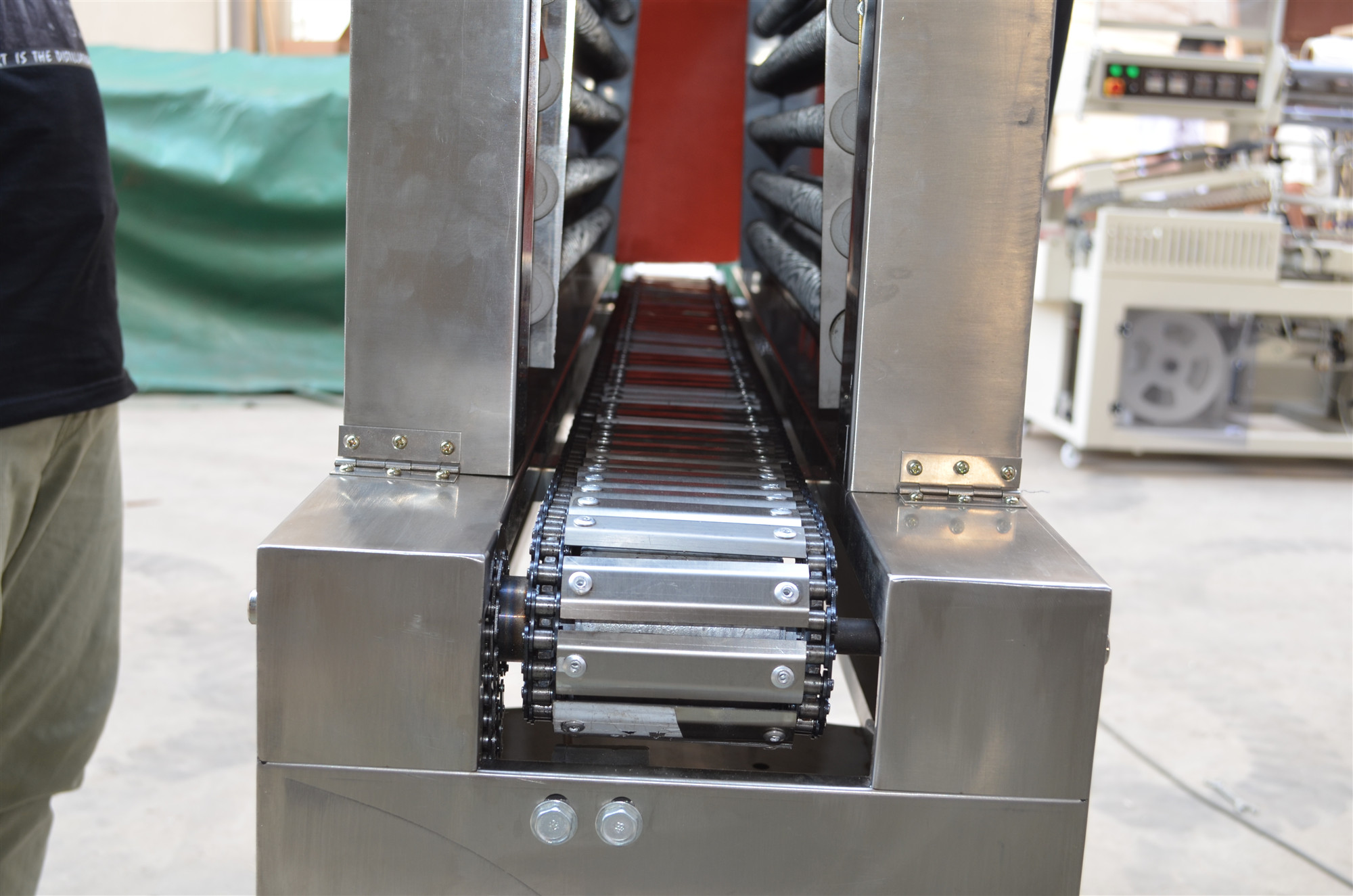

III.Product Detail

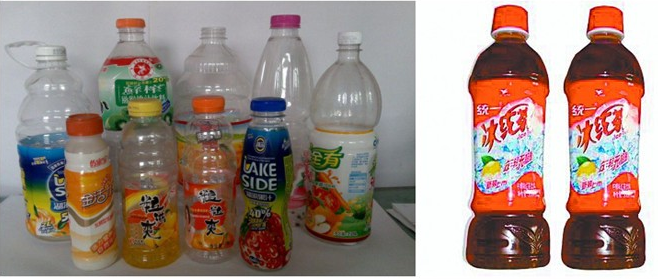

bottle body shrinking effect
