Multi functional dried herb/tiger nuts/ginger powder grinder machine

Updated：2017-08-18

I.Product Introduction:

Multi functional dried herb/tiger nuts/ginger powder grinder machine is mainly apply for food (red dates, sugar, rice, corn, starch, oats, flour, beans, chickpeas,peas,lentils and spices,cocoa powder,potato powder,coffee,salt,milk,onion,dehydrated vegetables,glucose , oat hull, husk, herbal flavors and fragrances), chemical materials ( polyethylene,PVC,polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments) grinding, especially for oily,viscous material.

electric herb grinder material is made of 304 stainless steel has reached GMP

requirements.

electric herb grinder also called high efficient grinding machine,

food grinding machine,high-speed grinding machine,flavoring grinding machine,

chemical grinding machine.

There is overload protector (electromagnetic type) to protect the driving motor.

II.Technical Data

Model	Power	Voltage	Capacity	Mesh	Motor speed	Input size	Weight	Outer size
RB-180	2200W	380V/220v	10-120kg	10-120	4200r/min	≤50mm	75kg	4505201040mm
RB-250	5500W	380V/220v	30-200kg	10-120	4200r/min	≤60mm	150kg	7506001260mm
RB-320	7500w	380V/220v	50-300kg	10-120	4200r/min	≤60mm	260kg	8007001350mm
RB-350	11000w	380V/220v	70-500kg	10-120	4200r/min	≤60mm	320kg	8009001550mm

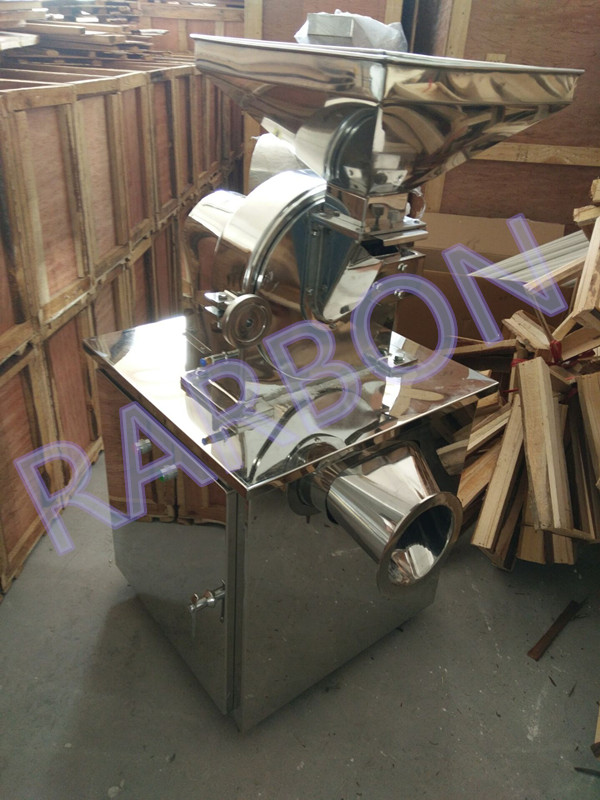

II.Product Show

III.Grinding effect
